Nason Piston & pin set - 4DP2053-0.50

Part
Nason logo

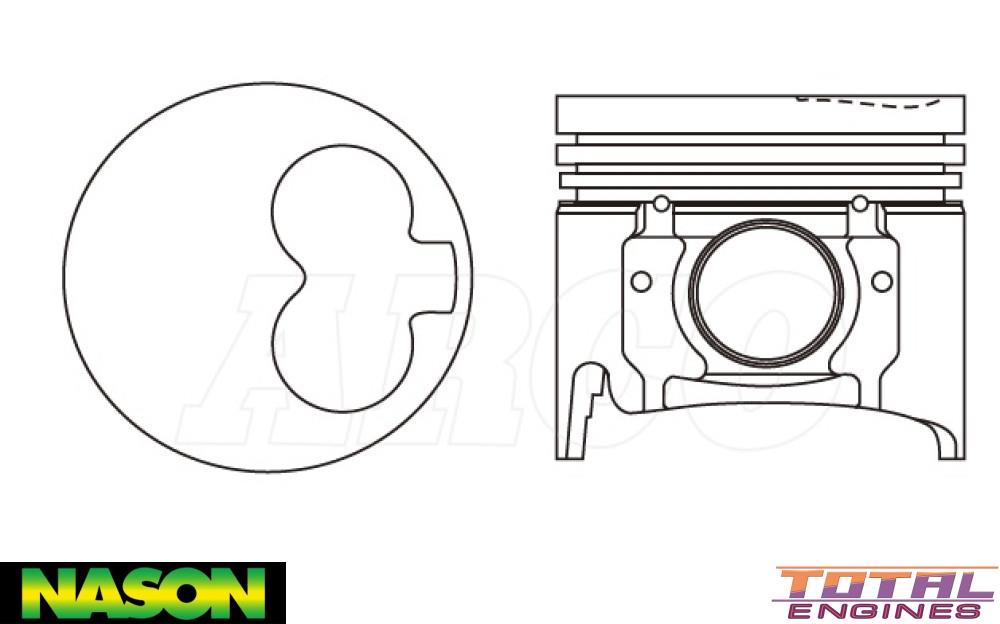

Nason Piston & pin set - 4DP2053-0.50

$410.70

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 93.00mm
Size: 0.50mm / .020"
Head Type: Clover Leaf
Piston Type: Cast
Length: 87.50mm
Comp Height: 51.70mm, -1.30mm, -3.20mm
Pin Size: 32.00mm x 70.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 33781-0.50

Description

Combustion Bowl OD

Alfin
