Nason >> Nason Piston & pin set - 4DP2054-1.00

Nason Piston & pin set - 4DP2054-1.00

Part
Nason logo

Nason Piston & pin set - 4DP2054-1.00

$656.37

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 93.00mm
Size: 1.00mm / .040"
Head Type: Combustion Bowl
Piston Type: Cast
Length: 81.20mm

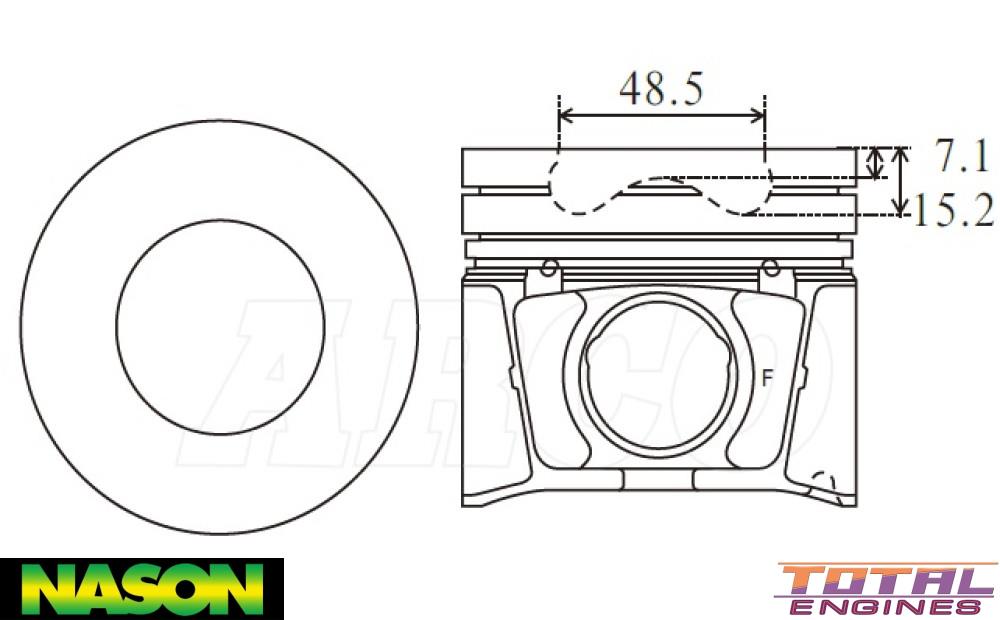

Comp Height: 51.70mm, -7.10mm, -15.20mm
Combustion Bowl OD: 48.50mm
Pin Size: 34.00mm x 70.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.00mm
Ring Set: 33799-1.00

Description

Alfin, Oil Gallery Cooling

Replaces PKMWLC-A-1.00
