Nason Piston & pin set - 4DP2066-0.50

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	92.00mm
Size:	0.50mm / .020"

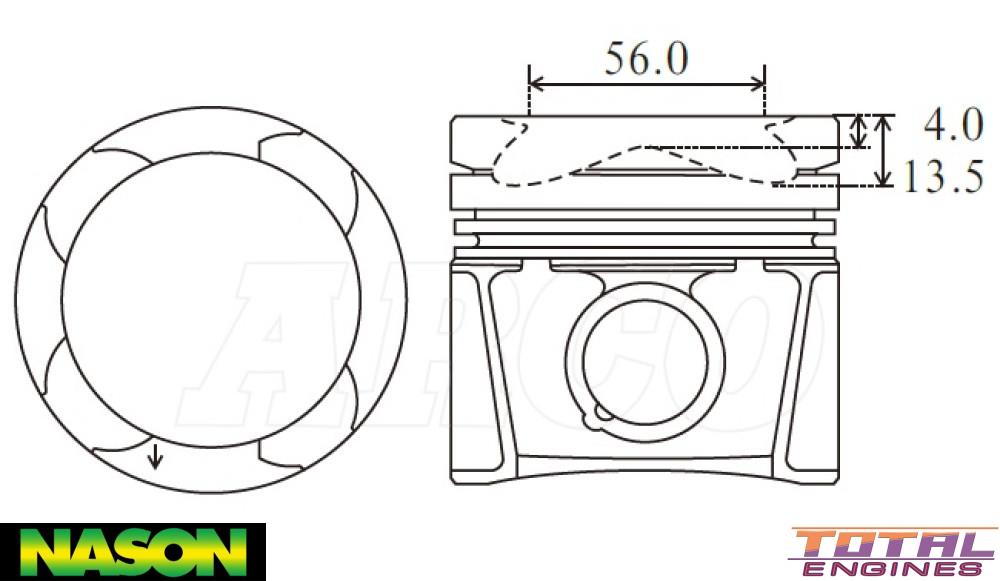

Head Type:	Flat Top With Combustion Bowl & 4 Valve Reliefs
Piston Type:	Cast
Length:	78.20mm
Comp Height:	53.20mm, -4.00mm, -13.50mm
Combustion Bowl OD:	56.00mm
Pin Size:	31.00mm x 67.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half Keystone
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	36050-0.50

Description

Alfin, Oil Gallery Cooling
