Nason Piston & pin set - 4DP2068-0.50

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	86.00mm
Size:	0.50mm / .020"
Head Type:	Flat Top With Combustion Bowl
Piston Type:	Cast
Length:	75.80mm
Comp Height:	46.80mm, -6.40mm, -15.50mm

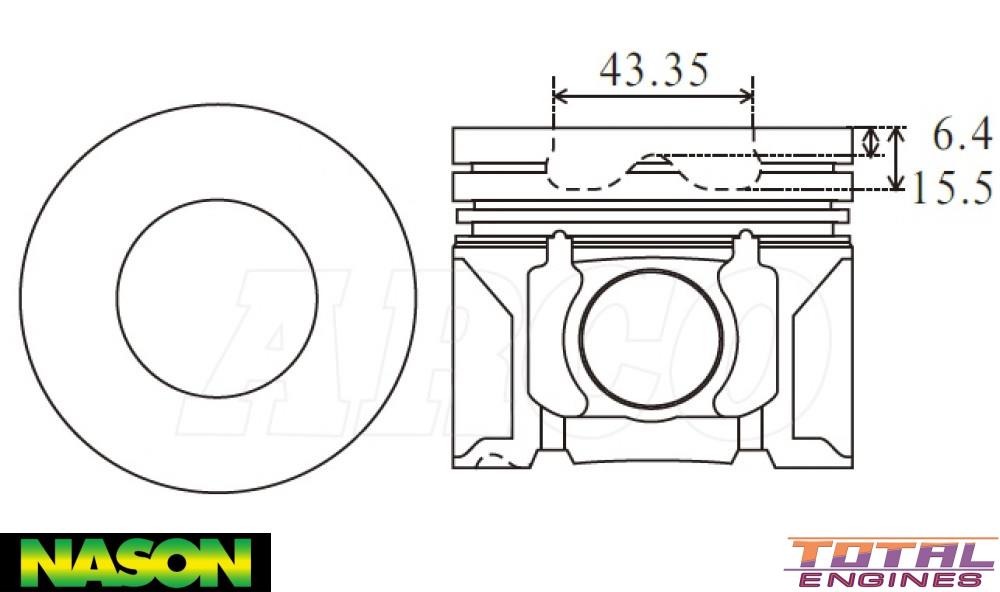

Combustion Bowl OD:	43.35mm
Pin Size:	30.00mm x 68.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm
Ring Set:	33760-0.50

Description

Alfin, Oil Gallery Cooling

Replaces PKMRF-0.50
