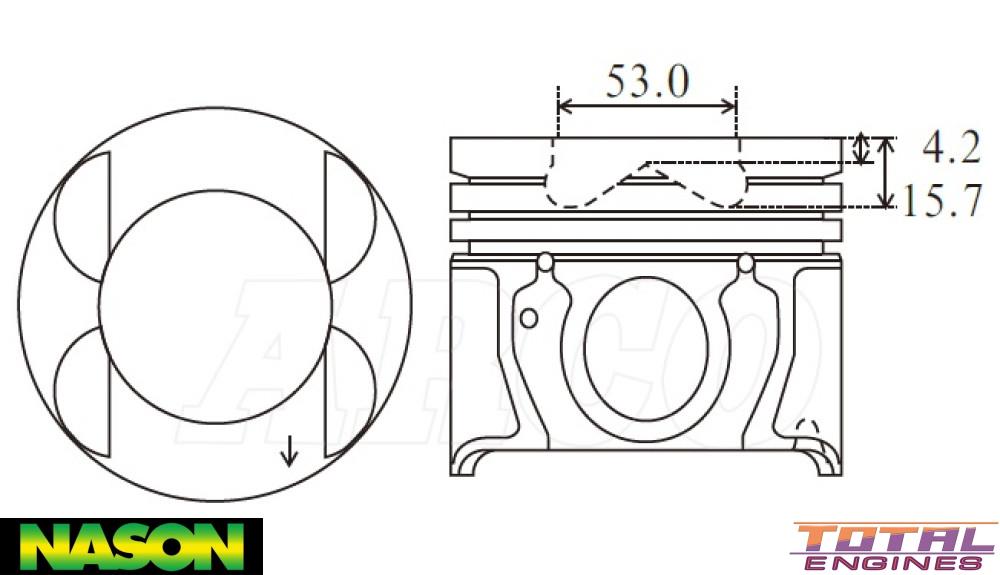

Nason Piston & pin set - 4DP2069-0.50

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	97.10mm
Size:	0.50mm / .020"
Head Type:	Flat Top With Combustion Bowl & 4 Valve Reliefs
Piston Type:	Cast
Length:	84.20mm
Comp Height:	52.20mm, -4.20mm, -15.70mm
Combustion Bowl OD:	53.00mm
Pin Size:	32.00mm x 81.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.50mm Half Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm
Ring Set:	42042-0.50

Description

Suits Common Rail

Alfin, Oil Gallery Cooling, Pin Bush Insert

Replaces PKHJ3CRD-0.50
