Nason >> Nason Piston & pin set - 4DP2072-0.50

Nason Piston & pin set - 4DP2072-0.50

Part
Nason logo

Nason Piston & pin set - 4DP2072-0.50

$520.61

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 77.20mm
Size: 0.50mm / .020"

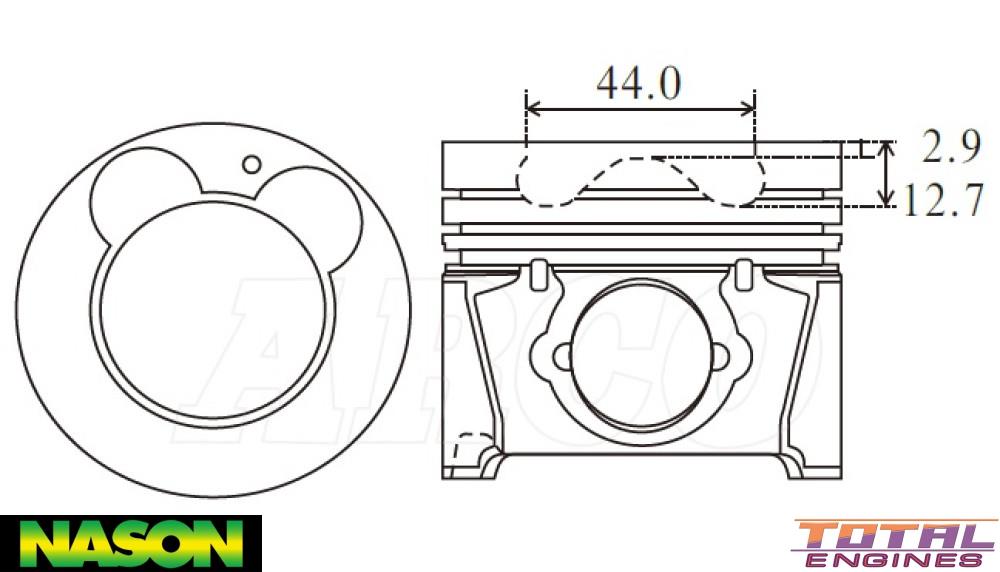

Head Type: Flat Top With Combustion Bowl & 2 Valve Reliefs
Piston Type: Cast
Length: 65.70mm
Comp Height: 42.00mm, -2.90mm, -12.70mm
Combustion Bowl OD: 44.00mm
Pin Size: 28.00mm x 62.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.75mm
2nd Ring Width: 1.75mm
Oil Ring Width: 3.00mm
Ring Set: 43026-0.50

Description

Alfin, Oil Gallery Cooling

Replaces PKHD4FB-0.50
