Nason Piston & pin set - 4DP2072-STD

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	77.20mm
Size:	STD
Head Type:	Flat Top With Combustion Bowl & 2 Valve Reliefs
Piston Type:	Cast
Length:	65.70mm

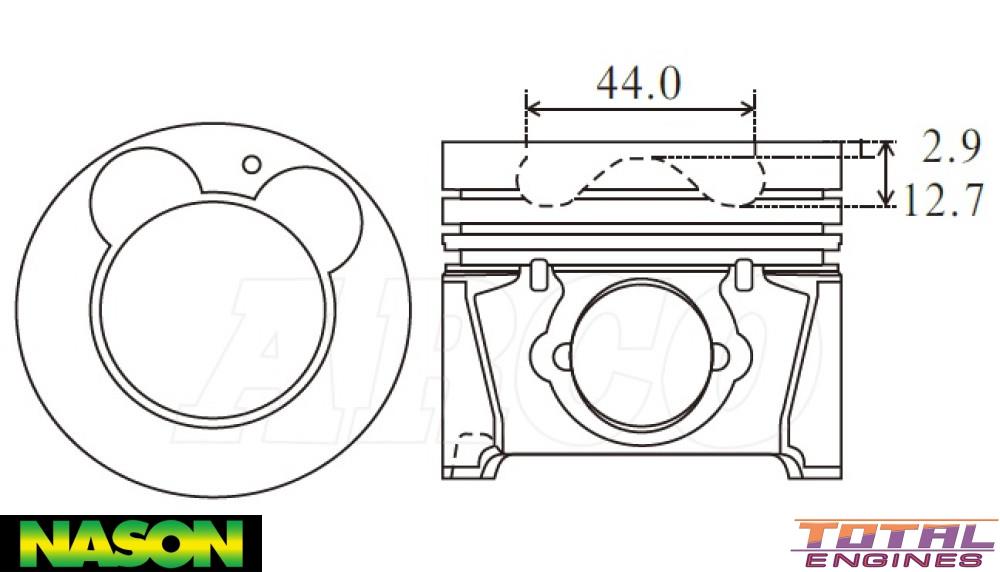

Comp Height:	42.00mm, -2.90mm, -12.70mm
Combustion Bowl OD:	44.00mm
Pin Size:	28.00mm x 62.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	1.75mm
2nd Ring Width:	1.75mm
Oil Ring Width:	3.00mm
Ring Set:	43026-STD

Description

Alfin, Oil Gallery Cooling
