Nason Piston & pin set - 4DP2073-STD

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	84.00mm
Size:	STD
Head Type:	Flat Top With Combustion Bowl
Piston Type:	Cast
Length:	75.90mm

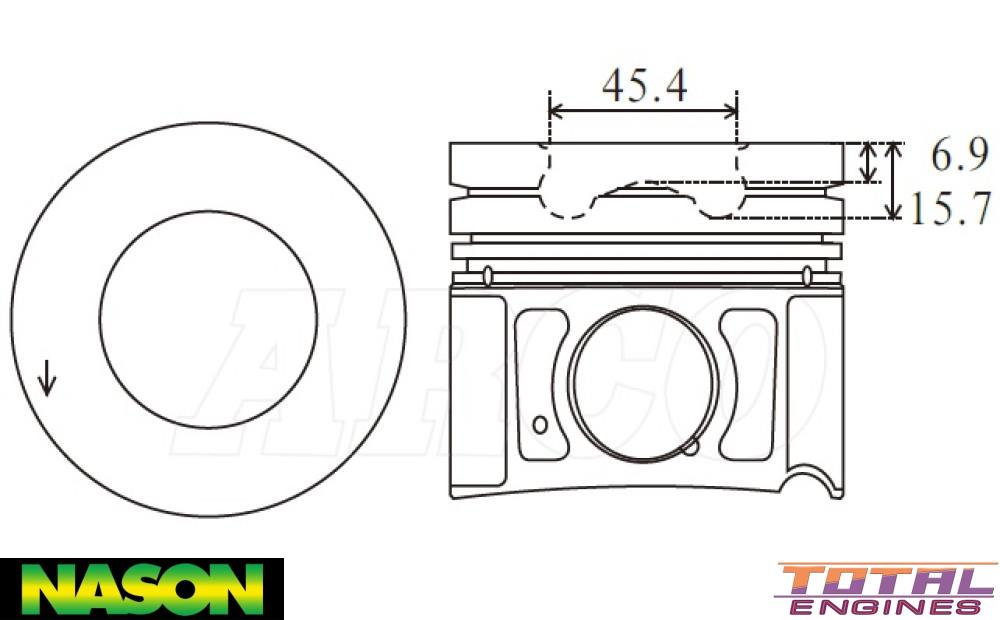

Comp Height:	48.90mm, -6.90mm, -15.70mm
Combustion Bowl OD:	45.40mm
Pin Size:	34.00mm x 66.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.50mm Double Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm
Ring Set:	42052-STD

Description

Alfin, Oil Gallery Cooling

Replaces PKHD4HA-STD
