Nason Piston & pin set - 4DP2074-STD

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	102.00mm
Size:	STD
Head Type:	Flat Top With Combustion Bowl
Piston Type:	Cast
Length:	86.90mm
Comp Height:	51.80mm, -18.70mm

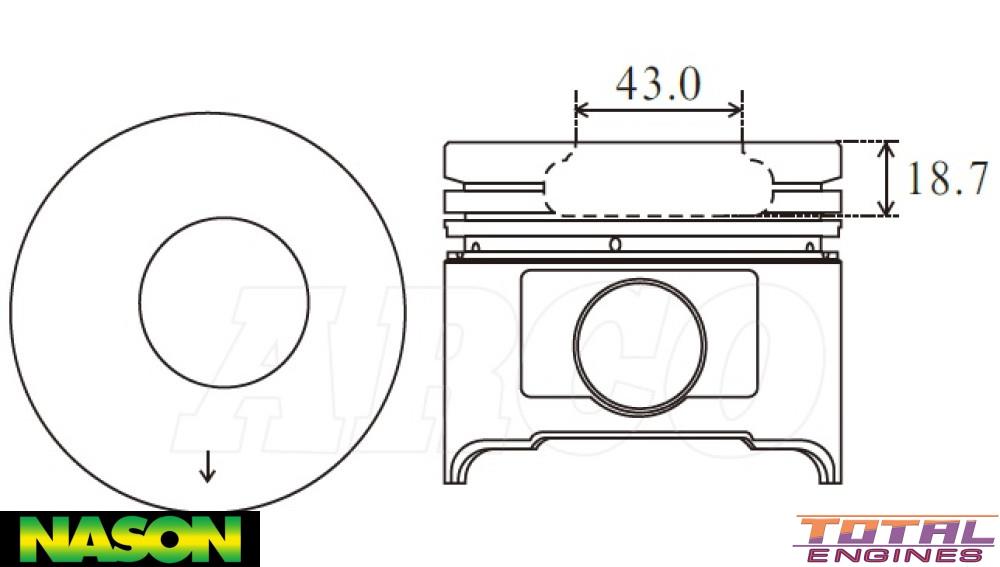

Combustion Bowl OD:	43.00mm
Pin Size:	32.00mm x 72.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.50mm Half Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	4.00mm
Ring Set:	35895-STD

Description

Suits 14B Only

Alfin

Replaces PKT14B-STD
