Nason >> Nason Piston & pin set - 4DP2075-STD

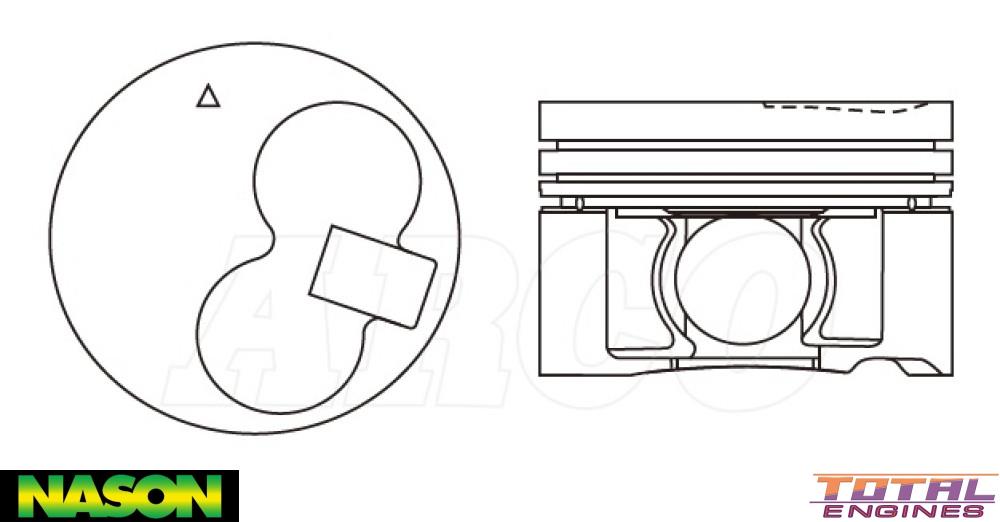

Nason Piston & pin set - 4DP2075-STD

Part
Nason logo

Nason Piston & pin set - 4DP2075-STD

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 99.20mm
Size: STD
Head Type: Flat Top Cloverlead
Piston Type: Cast
Length: 69.80mm
Comp Height: 45.20mm, -1.40mm, -2.80mm
Pin Size: 33.00mm x 79.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 34118-STD

Description

Suits QD32

Combustion Bowl OD

Alfin

Replaces PKNQD32-STD
