Nason >> Nason Piston & pin set - 4DP2076-0.50

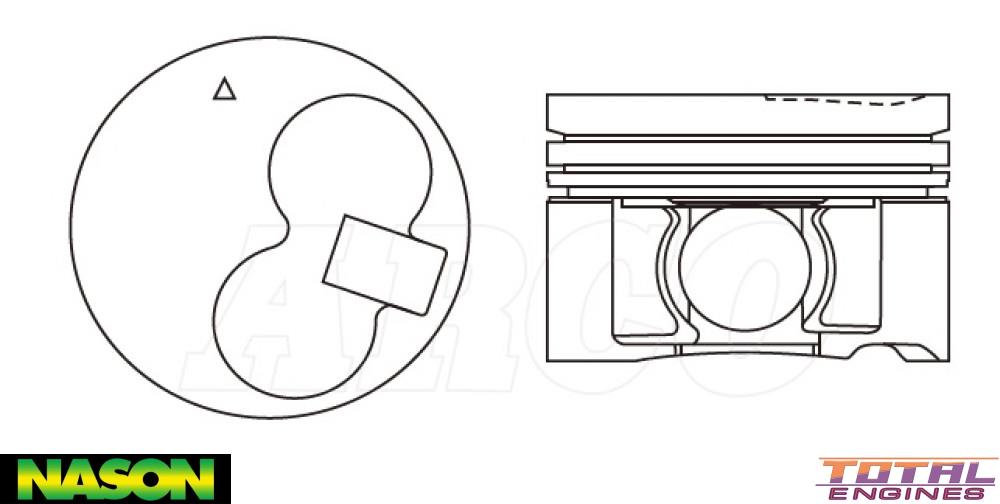

Nason Piston & pin set - 4DP2076-0.50

Part
Nason logo

Nason Piston & pin set - 4DP2076-0.50

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 99.20mm
Size: 0.50mm / .020"
Head Type: Flat Top Cloverlead
Piston Type: Cast
Length: 69.80mm
Comp Height: 45.30mm, -1.50mm, -2.60mm
Pin Size: 33.00mm x 79.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 34136-0.50

Description

Suits QD32ETI

Combustion Bowl OD

Alfin, Oil Gallery Cooling, Anodized Head

Replaces PKNQD32TI-0.50
