Nason Piston & pin set - 4DP2077-STD

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	84.00mm
Size:	STD
Head Type:	Flat Top With Combustion Bowl & 4 Valve Reliefs
Piston Type:	Cast
Length:	76.00mm

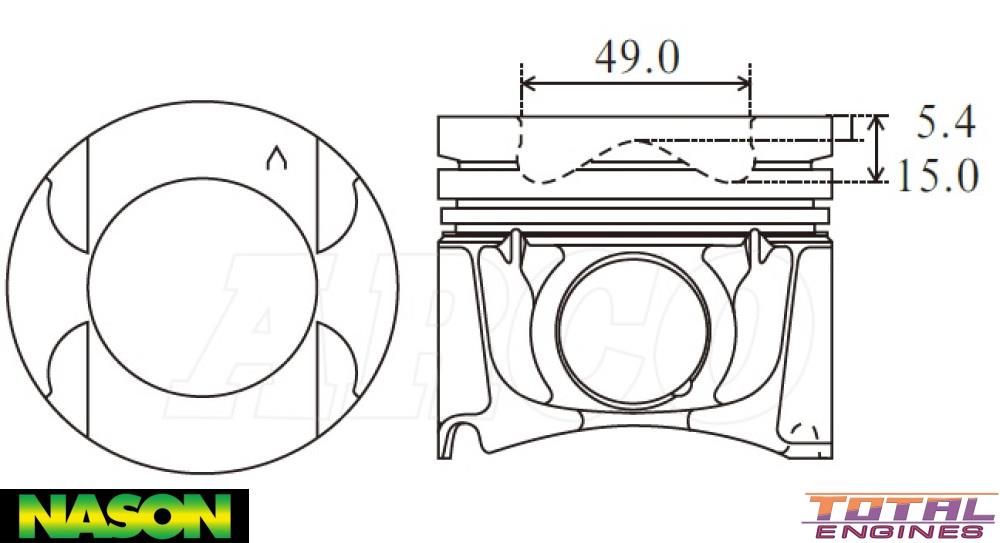

Comp Height:	47.90mm, -5.40mm, -15.00mm
Pin Size:	32.00mm x 65.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.50mm Half Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	2.00mm
Ring Set:	2D7343-STD

Description

Combustion Bowl OD

Alfin, Oil Gallery Cooling

Replaces 4MKRY9007-STD
