Nason >> Nason Piston & pin set - 4DP2081-STD

Nason Piston & pin set - 4DP2081-STD

Part
Nason logo

Nason Piston & pin set - 4DP2081-STD

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 95.40mm
Size: STD

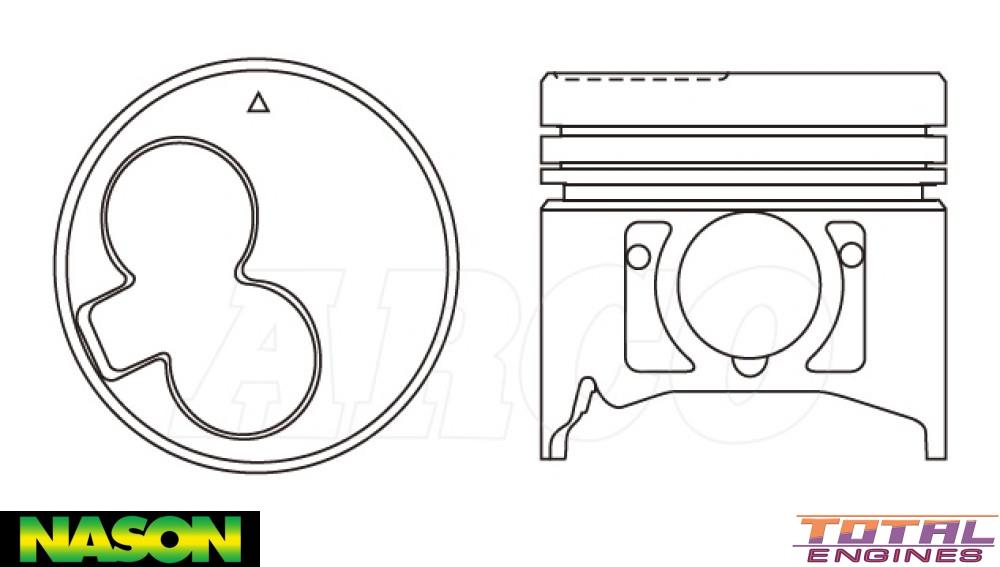

Head Type: Flat Top Clover Leaf
Piston Type: Cast
Length: 89.20mm
Comp Height: 49.20mm, -2.70mm
Pin Size: 34.00mm x 78.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 32607-STD

Description

Suits 4JG2T - Piston Crown With Triangle Marker, 1.7mm Depth Cut Out

Combustion Bowl OD

Alfin, Oil Gallery Cooling, Anodized Head

Replaces PKI4JG2TL-A-STD
