Nason Piston & pin set - 4DP2082-STD

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	95.40mm
Size:	STD
Head Type:	Flat Top With Combustion Bowl
Piston Type:	Cast
Length:	88.90mm

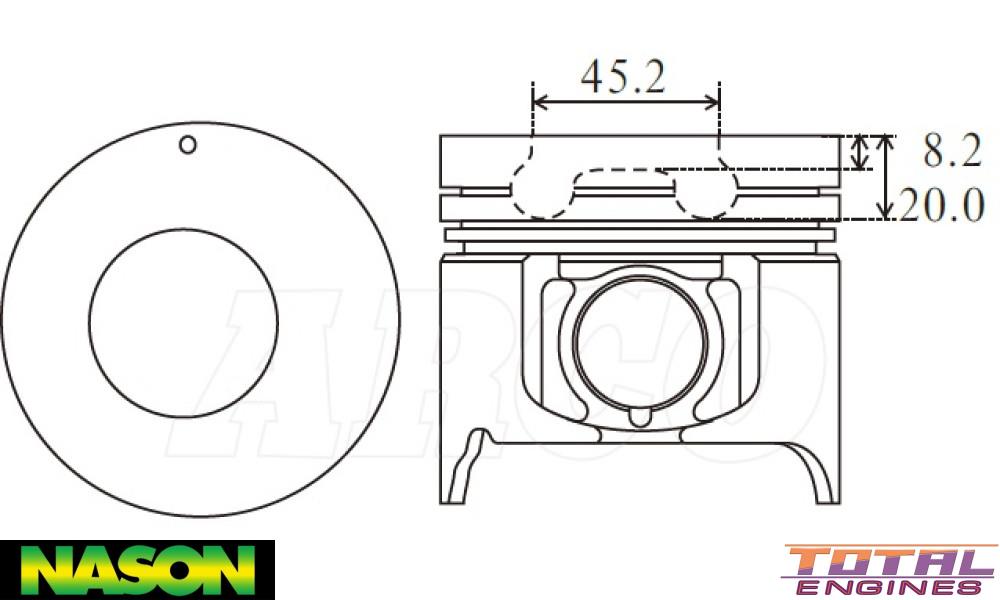

Comp Height:	49.90mm, -8.20mm, -20.00mm
Pin Size:	31.00mm x 76.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.50mm
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm
Ring Set:	32623-STD

Description

Combustion Bowl OD

Alfin, Oil Gallery Cooling

Replaces PKI4JH1TC-A-STD
