Nason Piston & pin set - 4DP2084-STD

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	93.00mm
Size:	STD
Head Type:	Flat Top With Combustion Bowl & 2 Valve Reliefs
Piston Type:	Cast
Length:	91.90mm

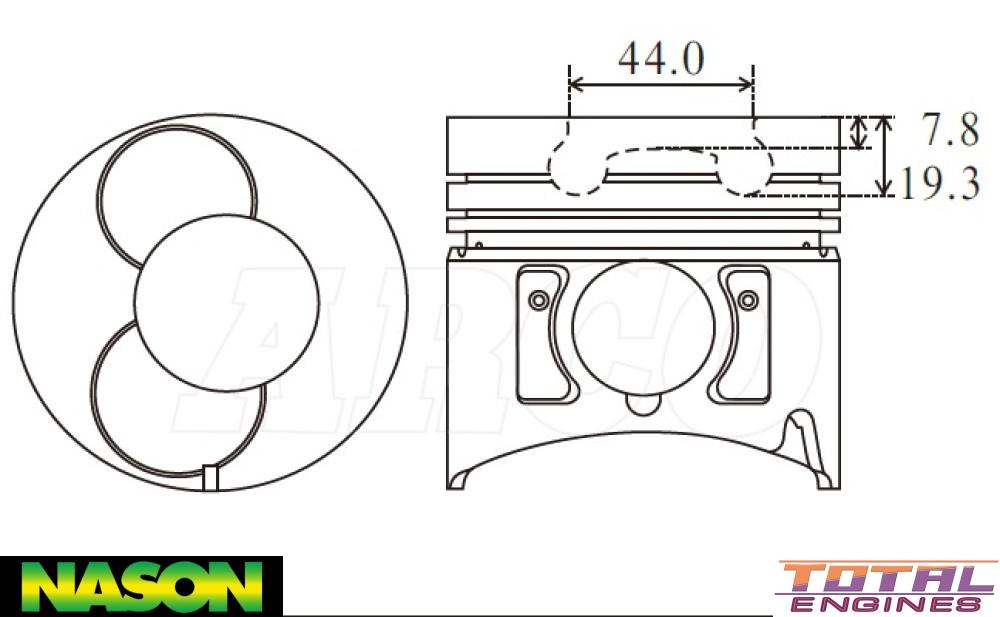

Comp Height:	51.90mm, -7.80mm, -19.30mm
Combustion Bowl OD:	44.00mm
Pin Size:	34.00mm x 78.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm
2nd Ring Width:	2.00mm
Oil Ring Width:	4.00mm
Ring Set:	32612-STD

Description

Suits From 10/1996 With Round Combustion Bowl

Alfin

Replaces PKI4JB1TL-STD
