Nason >> Nason Piston & pin set - 4DP2085-1.00

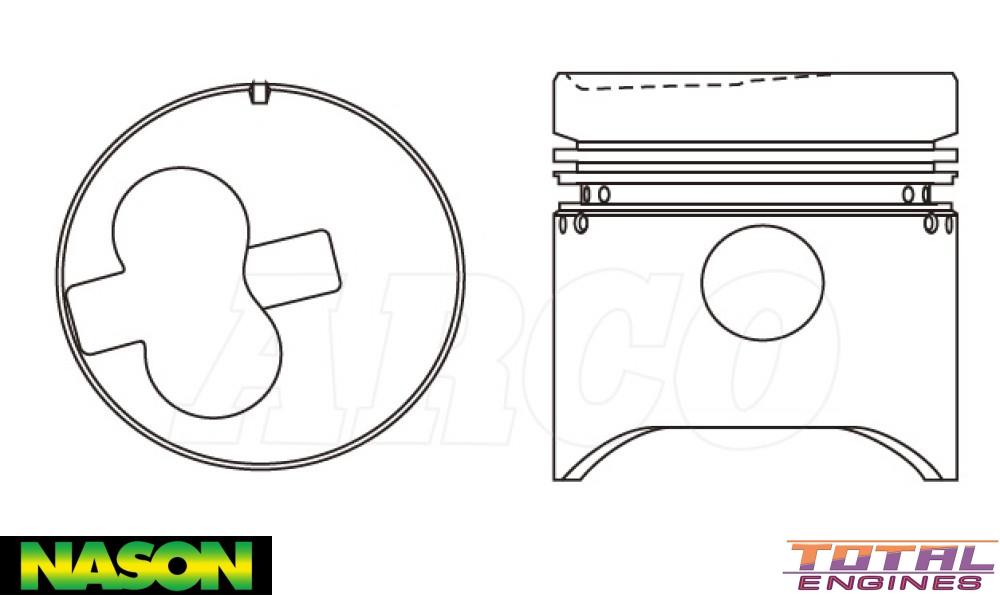

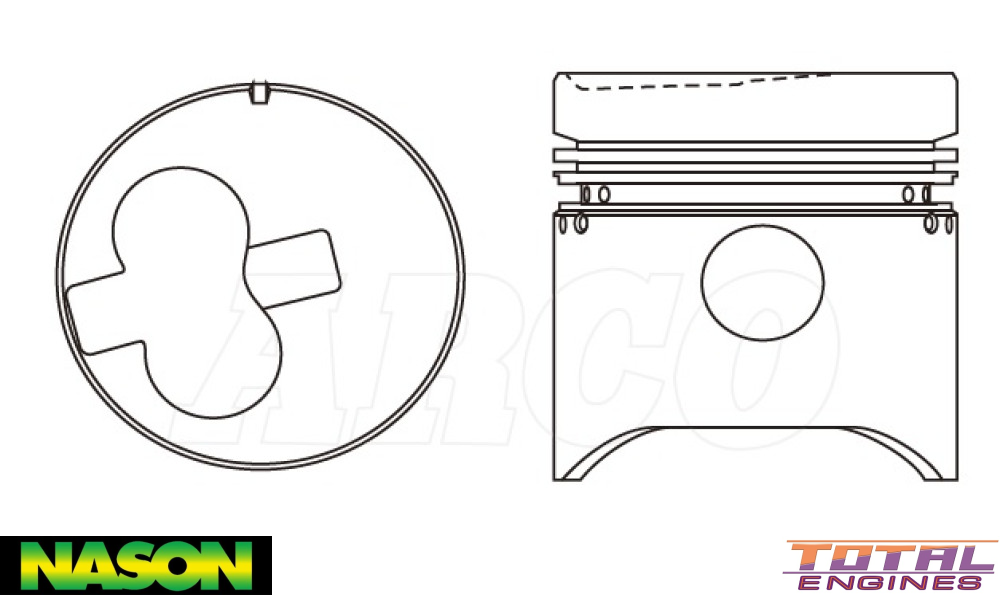

Nason Piston & pin set - 4DP2085-1.00

Part
Nason logo

Nason Piston & pin set - 4DP2085-1.00

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 95.00mm
Size: 1.00mm / .040"
Head Type: Flat Top With Clover Leaf
Piston Type: Cast
Length: 101.30mm
Comp Height: 52.30mm, -2.50mm, -3.60mm
Pin Size: 29.00mm x 79.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.50mm
Oil Ring Width: 4.50mm
Ring Set: 35840-1.00

Description

Suits Up To 8/1988

Combustion Bowl OD

Replaces PKTB-1.00
