Nason >> Nason Piston & pin set - 4DP2086-0.50

Nason Piston & pin set - 4DP2086-0.50

Part
Nason logo

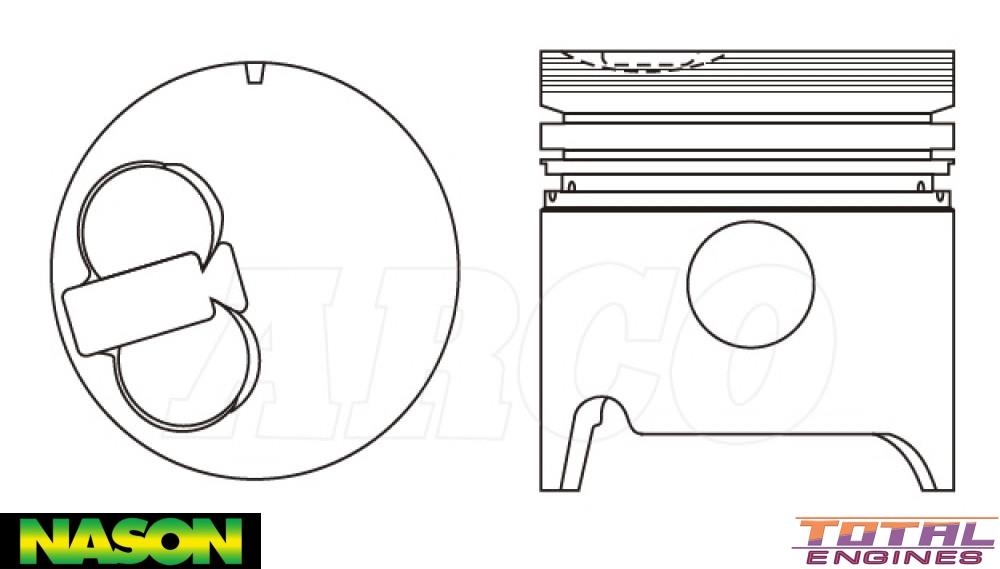

Nason Piston & pin set - 4DP2086-0.50

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 95.00mm
Size: 0.50mm / .020"
Head Type: Flat Top With Clover Leaf
Piston Type: Cast
Length: 101.20mm
Comp Height: 52.20mm, -2.50mm, -4.20mm
Pin Size: 29.00mm x 72.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 35840-0.50

Description

Suits From 8/1988

Combustion Bowl OD

Alfin

Replaces PKTB-A-0.50
