Nason Piston & pin set - 4DP2087-1.00

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	95.00mm
Size:	1.00mm / .040"
Head Type:	Flat Top With Combustion Bowl
Piston Type:	Cast
Length:	98.50mm
Comp Height:	63.50mm, -18.00mm

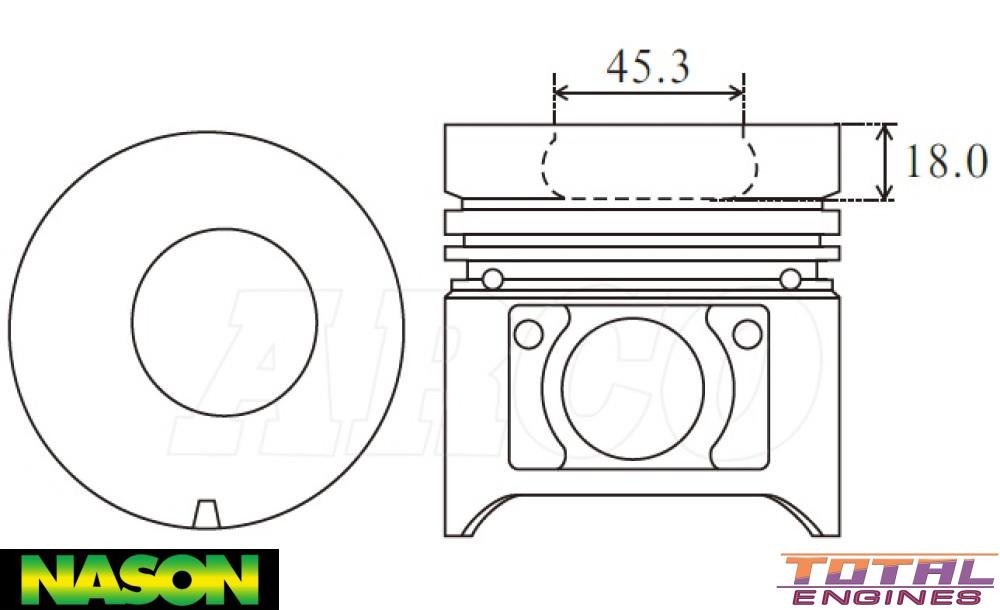

Combustion Bowl OD:	45.30mm
Pin Size:	34.00mm x 76.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.50mm Half Keystone
2nd Ring Width:	2.50mm
Oil Ring Width:	4.50mm
Ring Set:	35840-1.00
Size:	Oversize 1.00mm
Size:	Suits Engines With 34mm Pin

Description

Suits Engines With 34mm Pin
