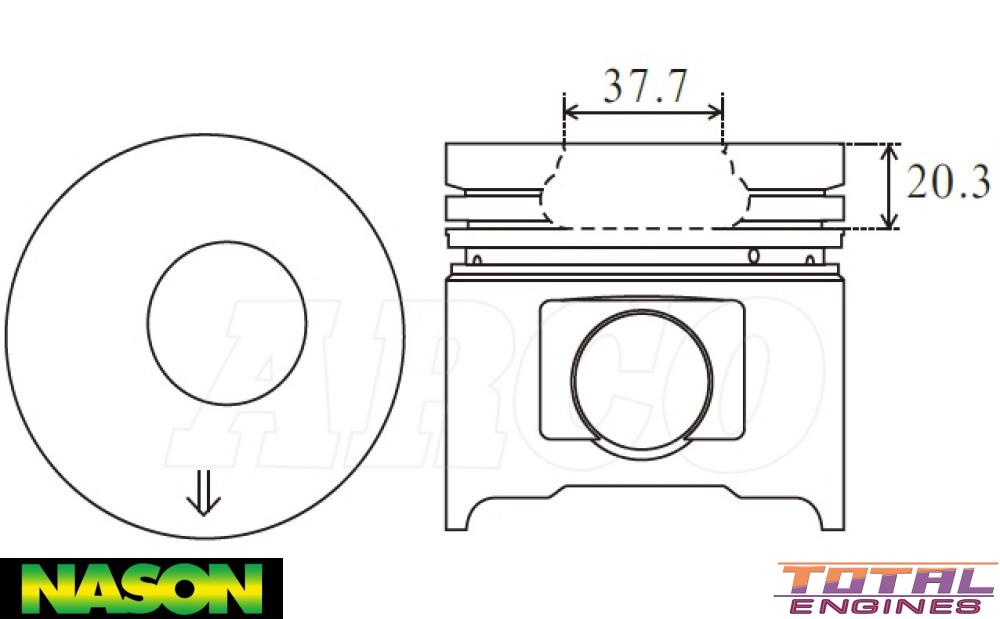

Nason Piston & pin set - 4DP2088-1.00

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	95.00mm
Size:	1.00mm / .040"
Head Type:	Flat Top With Combustion Bowl
Piston Type:	Cast
Length:	90.40mm
Comp Height:	55.40mm, -20.30mm
Combustion Bowl OD:	37.70mm
Pin Size:	32.00mm x 72.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.50mm Half Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	4.00mm
Ring Set:	35840-1.00

Description

Suits Engines With 32mm Pin

Alfin

Replaces PKT11B-A-1.00
