Nason >> Nason Piston & pin set - 4DP2090-STD

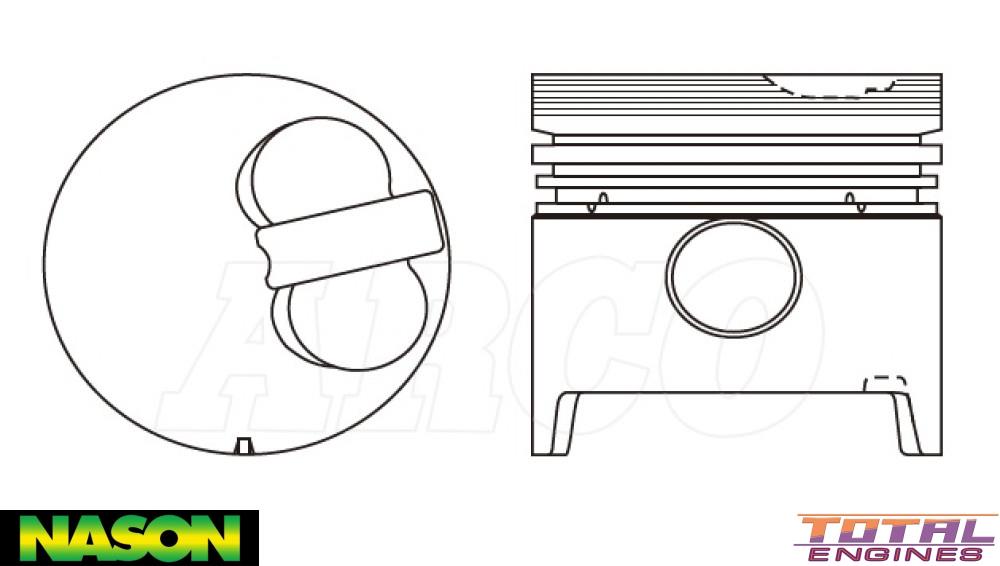

Nason Piston & pin set - 4DP2090-STD

Part
Nason logo

Nason Piston & pin set - 4DP2090-STD

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 102.00mm
Size: STD
Head Type: Flat Top With Clover Leaf
Piston Type: Cast
Length: 101.20mm
Comp Height: 55.20mm, -5.00mm
Pin Size: 32.00mm x 72.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 35895-STD

Description

Suits From 8/88

Combustion Bowl OD

Replaces PKT3B-A-STD
