Nason Piston & pin set - 4DP2091-STD

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	102.00mm
Size:	STD

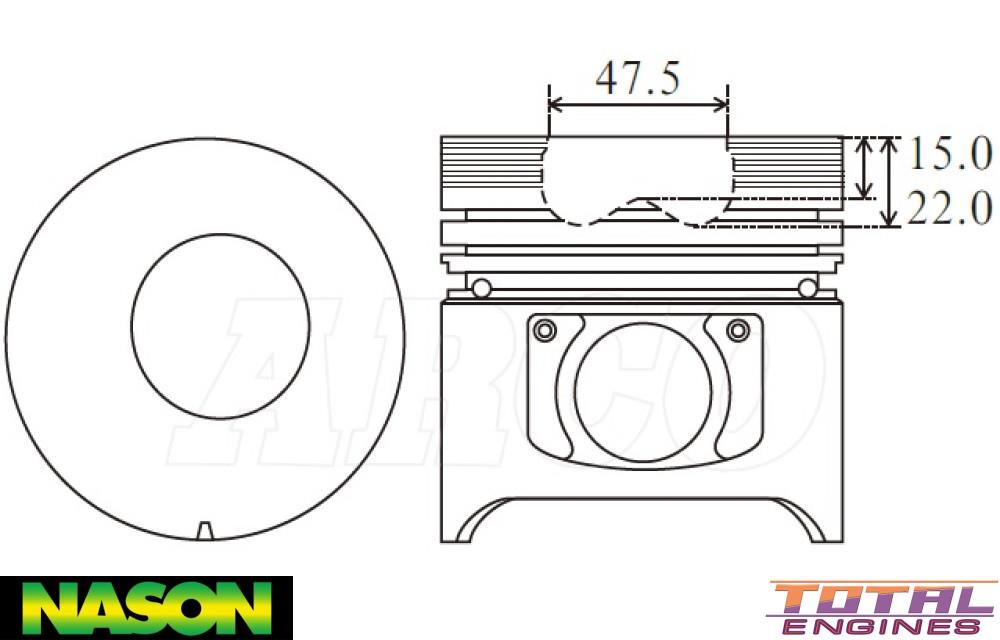

Head Type:	Flat Top With Combustion Bowl
Piston Type:	Cast
Length:	104.40mm
Comp Height:	63.50mm, -15.00mm, -22.00mm
Combustion Bowl OD:	47.50mm
Pin Size:	34.00mm x 84.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.50mm
2nd Ring Width:	2.50mm
Oil Ring Width:	4.50mm
Ring Set:	35890-STD

Description

Alfin

Replaces PKT13B-STD
