Nason Piston & pin set - 4DP2093-STD

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	96.00mm
Size:	STD

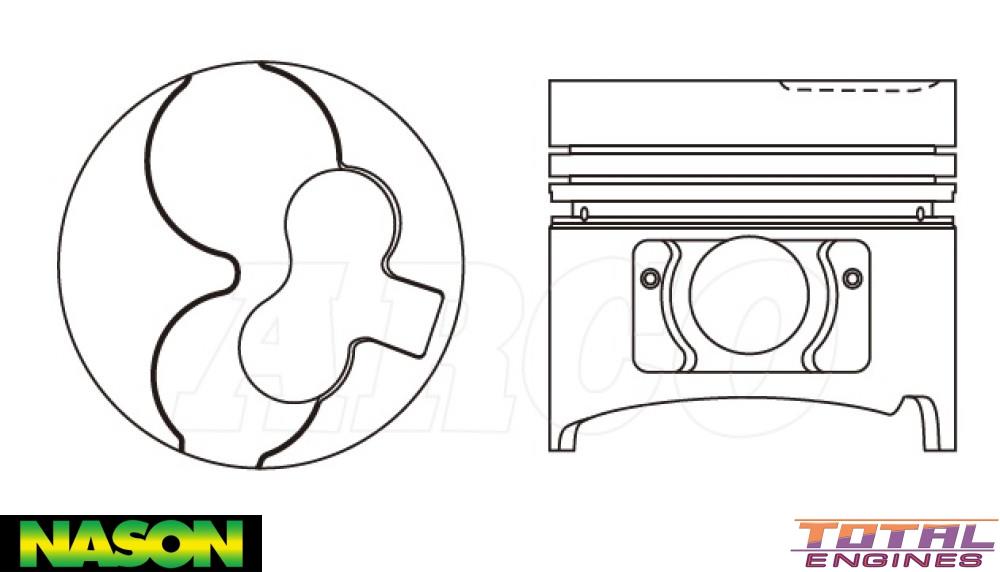

Head Type:	Flat Top With Clover Lead & 2 Valve Reliefs
Piston Type:	Cast
Length:	87.00mm
Comp Height:	50.20mm, -1.70mm
Pin Size:	28.00mm x 80.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.50mm
2nd Ring Width:	2.00mm
Oil Ring Width:	4.00mm
Ring Set:	34096-STD

Description

With 28mm Piston Pin

Combustion Bowl OD

Alfin

Replaces PKNTD27-STD
