Nason >> Nason Piston & pin set - 4DP2094-0.50

Nason Piston & pin set - 4DP2094-0.50

Part
Nason logo

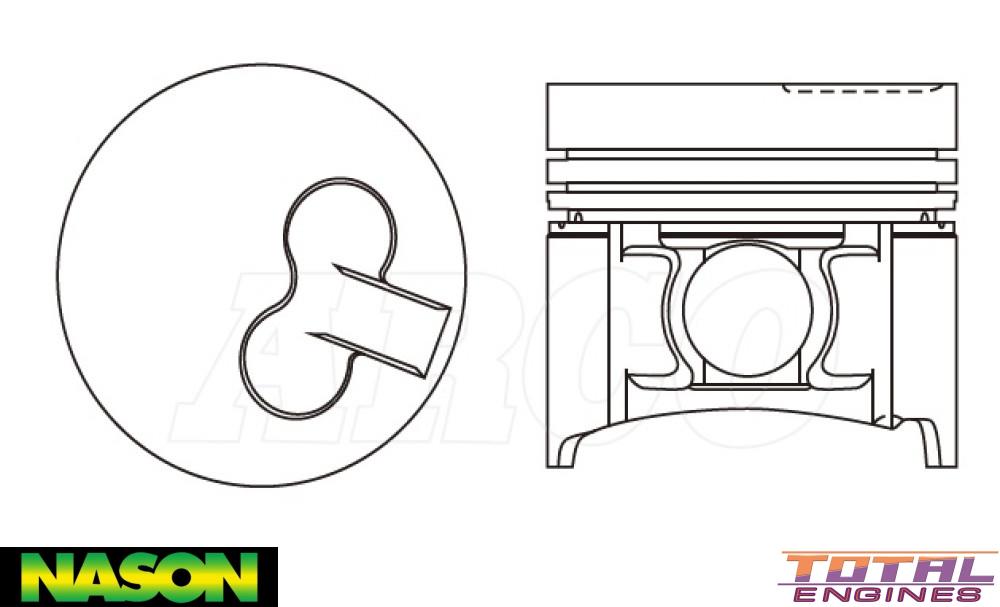

Nason Piston & pin set - 4DP2094-0.50

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 96.00mm
Size: 0.50mm / .020"
Head Type: Flat Top With Clover Lead
Piston Type: Cast
Length: 86.00mm
Comp Height: 50.30mm, -0.50mm, - 1.70mm
Pin Size: 30.00mm x 74.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 34075-0.50

Description

With 30mm Piston Pin

Combustion Bowl OD

Alfin

Replaces PKNTD27L-0.50
