Nason Piston & pin set - 4DP2097-0.50

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	95.40mm
Size:	0.50mm / .020"
Head Type:	Flat Top With Combustion Bowl
Piston Type:	Cast
Length:	78.50mm
Comp Height:	49.80mm, -5.20mm, -15.20mm

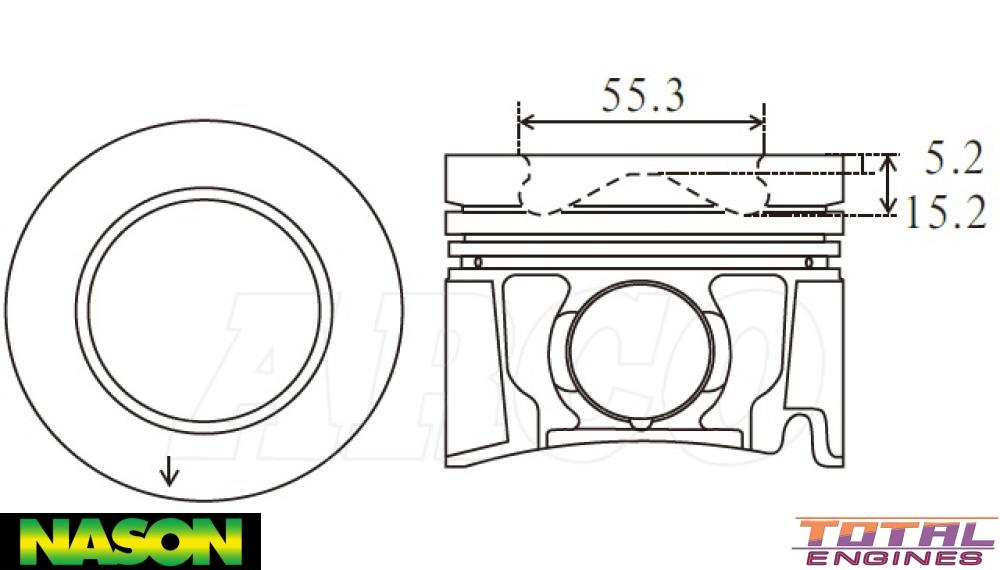

Combustion Bowl OD:	55.30mm
Pin Size:	34.00mm x 78.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half Keystone
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	32634-0.50

Description

Suits From 05/2012 To 9/2016 D-Max & MU-X

Alfin, Oil Gallery Cooling

Centre Position Oil Drain
