Nason Piston & pin set - 4DP2100-0.50

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	95.40mm
Size:	0.50mm / .020"
Head Type:	Flat Top With Combustion Bowl
Piston Type:	Cast
Length:	78.40mm

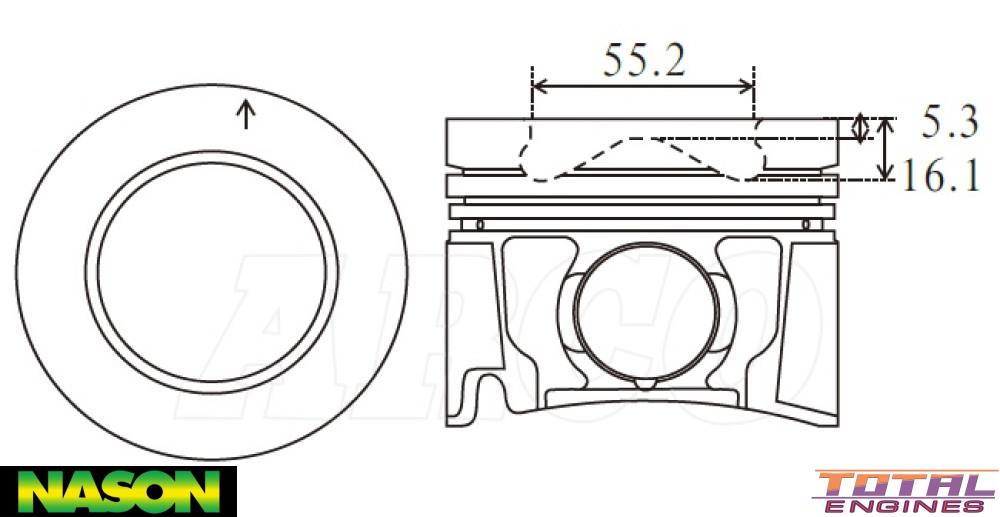

Comp Height:	49.80mm, 5.30mm, -16.10mm
Combustion Bowl OD:	55.20mm
Pin Size:	34.00mm x 78.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half Keystone
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	32634-0.50

Description

Suits Industrial Engines

Alfin, Oil Gallery Cooling
