Nason Piston & pin set - 4DP2108-STD

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	94.00mm
Size:	STD

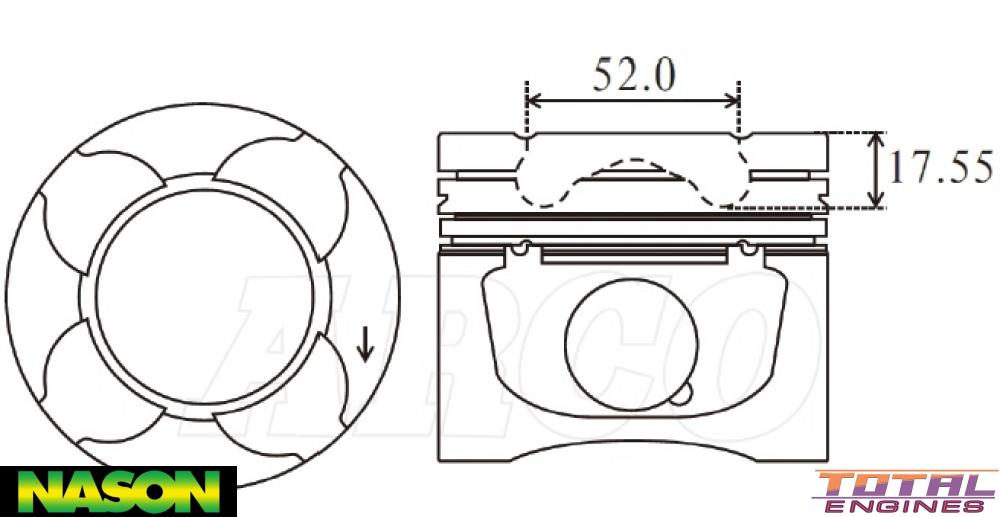

Head Type:	Flat Top With 4 Valve Reliefs & Combustion Bowl
Piston Type:	Cast
Length:	80.00mm
Comp Height:	52.00mm, -17.55mm
Combustion Bowl OD:	52.00mm
Pin Size:	32.00mm x 71.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half Keystone
2nd Ring Width:	1.50mm
Oil Ring Width:	2.00mm
Ring Set:	2D7363-STD

Description

Suits LWN Engine

Alfin, Oil Gallery Cooling
