Nason >> Nason Piston & pin set - 4P1003-STD

Nason Piston & pin set - 4P1003-STD

Part
Nason logo

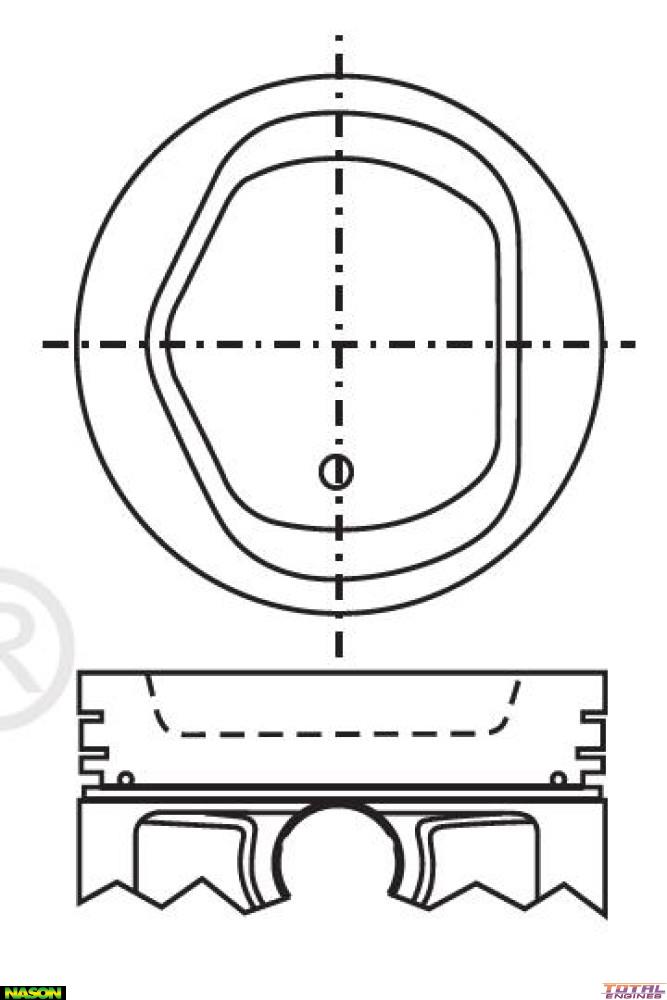

Nason Piston & pin set - 4P1003-STD

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 89.00mm
Size: Std
Head Type: Dish Top
Piston Type: Cast
Length: 58.00mm
Comp Height: 32.50mm - 9.90mm
Pin Size: 20.00mm x 57.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C4660 or 4660

Description

Replaces 4RP1809
