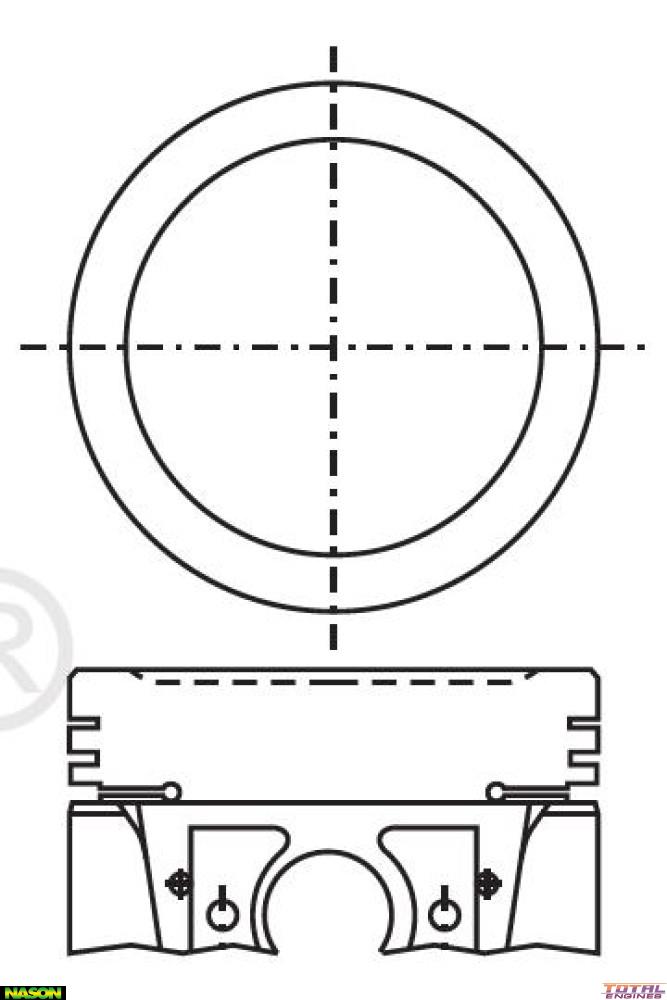

Nason Piston & pin set - 4P1009-1.50

Part

Nason Piston & pin set - 4P1009-1.50

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	87.20mm
Size:	1.50mm / .060"
Head Type:	Dish Top
Piston Type:	Cast
Length:	84.00mm
Comp Height:	41.00mm - 1.65mm
Pin Size:	22.00mm x 72.50mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm
2nd Ring Width:	2.50mm
Oil Ring Width:	4.00mm
Ring Set:	2C6830 or 6830
Size:	1.50mm Oversize

Description
