Nason >> Nason Piston & Pin Set - 4P1016-1.00

Nason Piston & Pin Set - 4P1016-1.00

Part
Nason logo

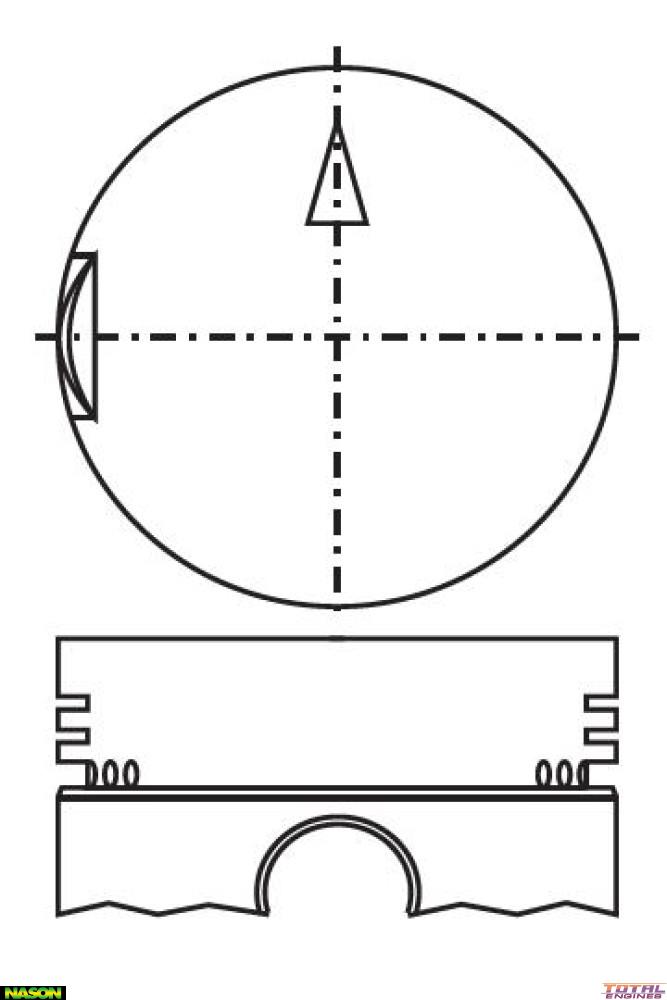

Nason Piston & Pin Set - 4P1016-1.00

Out Of Stock

Specifications
Size: 1.00mm Oversize
Ring Set: 2C4247 or 4247
Oil Ring Width: 4.00mm
2nd Ring Width: 2.00mm
Top Ring Width: 2.00mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 22.00mm x 75.00mm
Comp Height: 39.60mm
Length: 79.30mm
Piston Type: Cast
Head Type: Flat Top with 1 Valve Relief
Size: 1.00mm / .040"
Std Bore Size: 84.00mm
Piston Set: 4 x Piston & Pins
