Nason >> Nason Piston & pin set - 4P1017-1.00

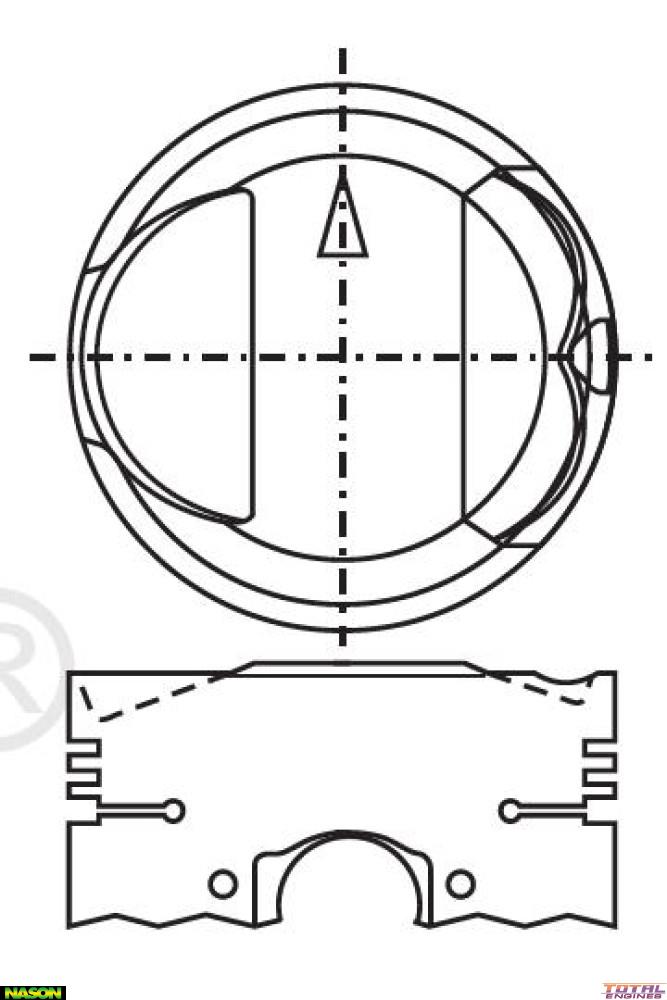

Nason Piston & pin set - 4P1017-1.00

Part
Nason logo

Nason Piston & pin set - 4P1017-1.00

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 73.60mm
Size: 1.00mm / .040"
Head Type: Dome Top 3 Valve Reliefs
Piston Type: Cast
Length: 73.60mm
Comp Height: 35.00mm + 1.50mm
Pin Size: 21.00mm x 72.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 2C6172 or 6172
