Nason >> Nason Piston & pin set - 4P1018-1.00

Nason Piston & pin set - 4P1018-1.00

Part
Nason logo

Nason Piston & pin set - 4P1018-1.00

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 65.50mm
Size: 1.00mm / .040"

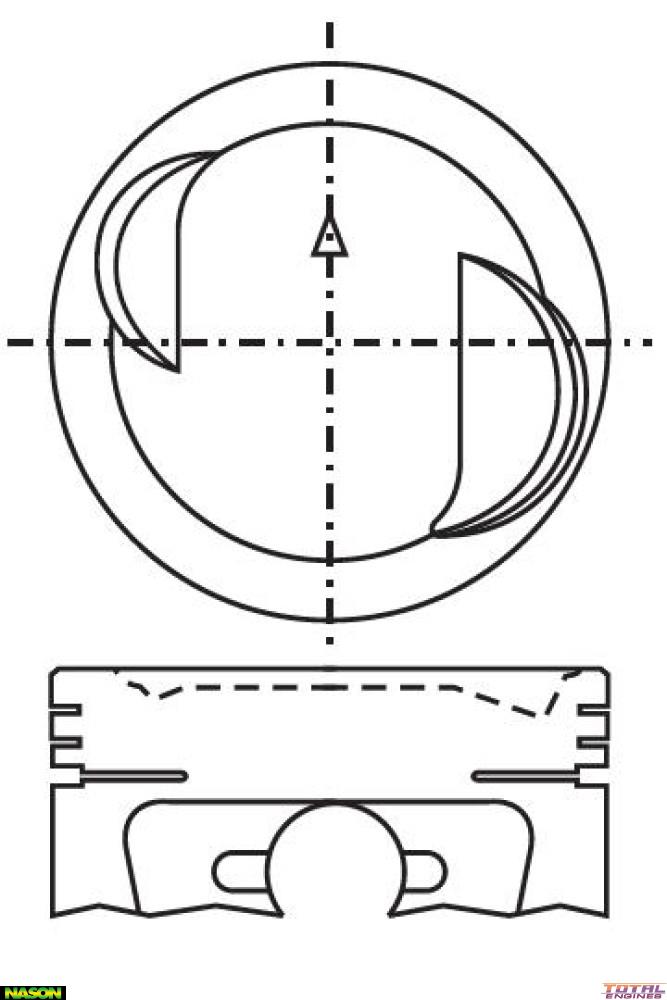

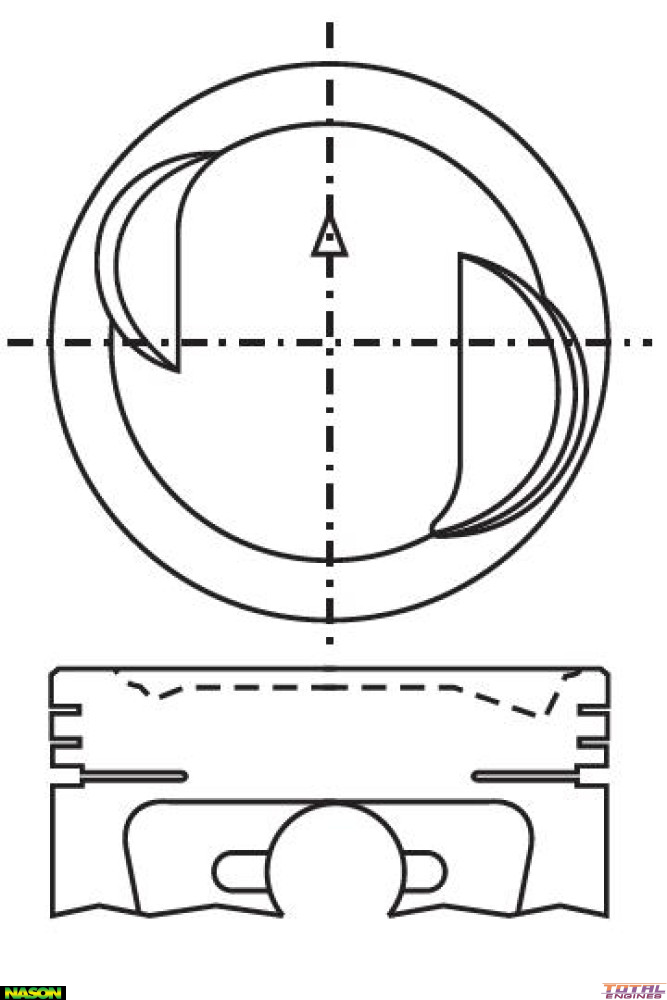

Head Type: Dish Top 2 Valve Reliefs
Piston Type: Cast
Length: 55.00mm
Comp Height: 24.50mm - 2.00mm
Pin Size: 16.00mm x 53.50mm
Pin Type: Fill Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C4234 or 4234
Size: 1.00mm Oversize
