Nason >> Nason Piston & pin set - 4P1020-0.50

Nason Piston & pin set - 4P1020-0.50

Part
Nason logo

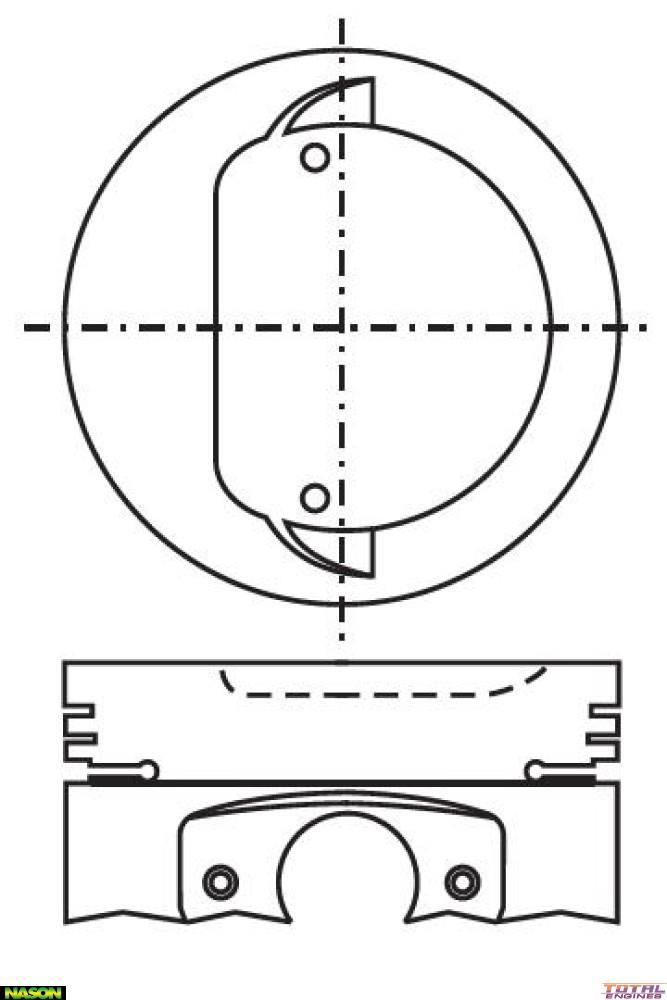

Nason Piston & pin set - 4P1020-0.50

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.00mm
Size: 0.50mm / .020"
Head Type: Dish Top 2 Valve Reliefs
Piston Type: Cast
Length: 70.00mm
Comp Height: 35.00mm - 5.00mm
Pin Size: 22.00mm x 66.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M4219 or 4219
Size: 0.50mm Oversize
