Nason >> Nason Piston & pin set - 4P1022-1.50

Nason Piston & pin set - 4P1022-1.50

Part
Nason logo

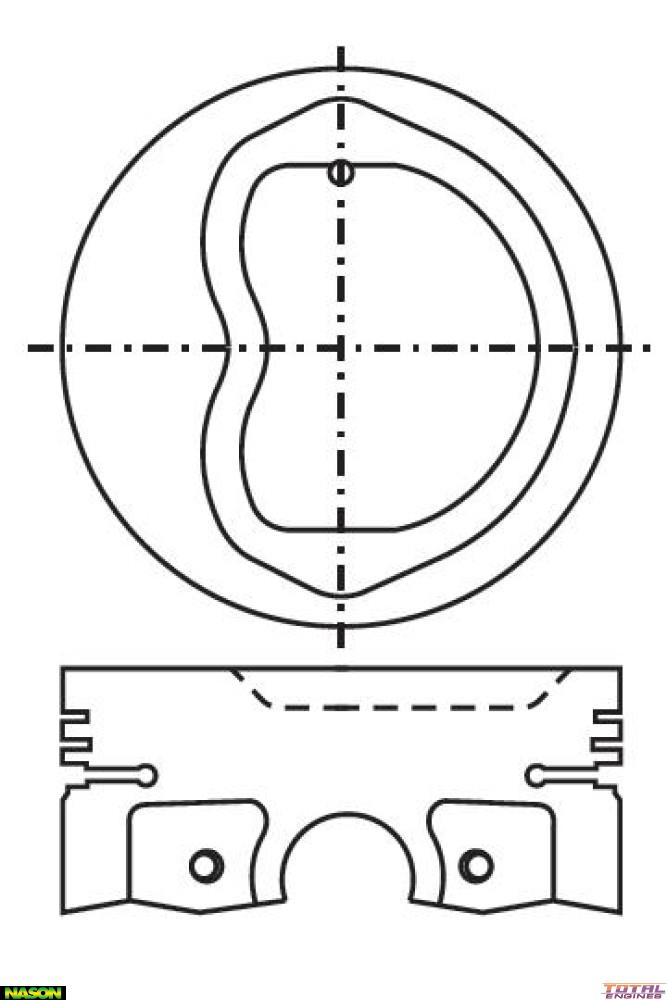

Nason Piston & pin set - 4P1022-1.50

$241.31

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 91.00mm
Size: 1.50mm / .060"
Head Type: Dish Top
Piston Type: Cast
Length: 65.00mm
Comp Height: 35.00mm - 6.20mm
Pin Size: 22.00mm x 66.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C4480 or 4480
Size: 1.50mm Oversize
