Nason >> Nason Piston & pin set - 4P1026-1.00

Nason Piston & pin set - 4P1026-1.00

Part
Nason logo

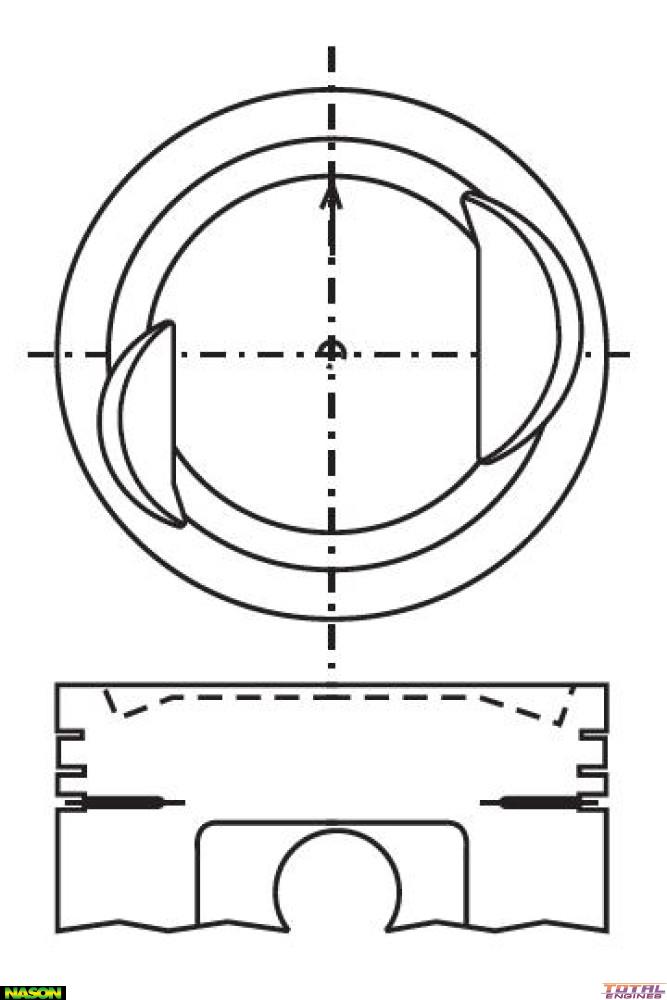

Nason Piston & pin set - 4P1026-1.00

$196.27

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 74.00mm
Size: 1.00mm / .040"
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 55.40mm
Comp Height: 28.40mm - 1.30mm
Pin Size: 17.00mm x 62.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C4258

Description

Replaces 4KRY2934
