Nason >> Nason Piston & pin set - 4P1031-STD

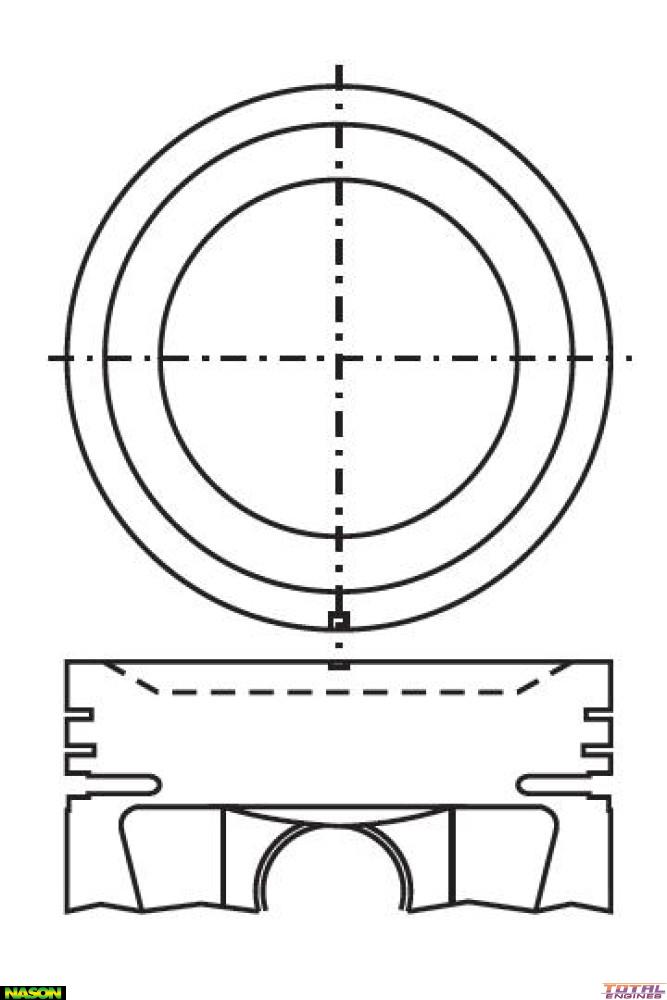

Nason Piston & pin set - 4P1031-STD

Part
Nason logo

Nason Piston & pin set - 4P1031-STD

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 89.30mm
Size: Std
Head Type: Dish Top
Piston Type: Cast
Length: 81.00mm
Comp Height: 39.00mm - 5.20mm
Pin Size: 23.00mm x 77.70mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C4603 or 4603
