Nason >> Nason Piston & pin set - 4P1033-0.50

Nason Piston & pin set - 4P1033-0.50

Part
Nason logo

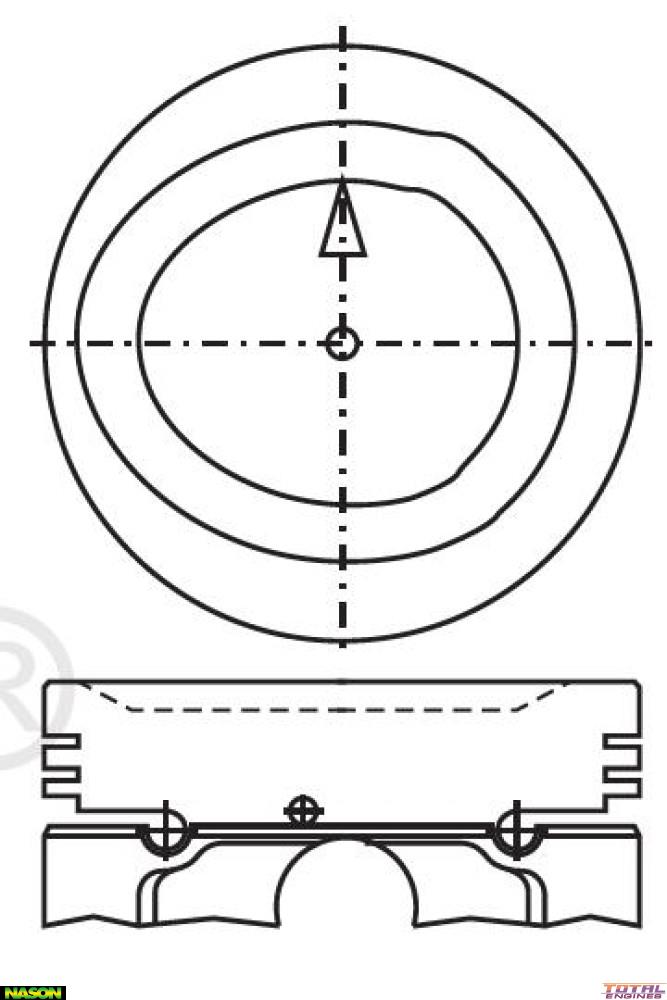

Nason Piston & pin set - 4P1033-0.50

$113.62

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 75.50mm
Size: 0.50mm / .020"
Head Type: Dish Top
Piston Type: Cast
Length: 58.60mm
Comp Height: 29.40mm - 3.60mm
Pin Size: 18.00mm x 60.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.5mmm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C5716 or 5716

Description

Dish Top

Replaces 4KRY8039
