Nason >> Nason Piston & pin set - 4P1034-1.00

Nason Piston & pin set - 4P1034-1.00

Part
Nason logo

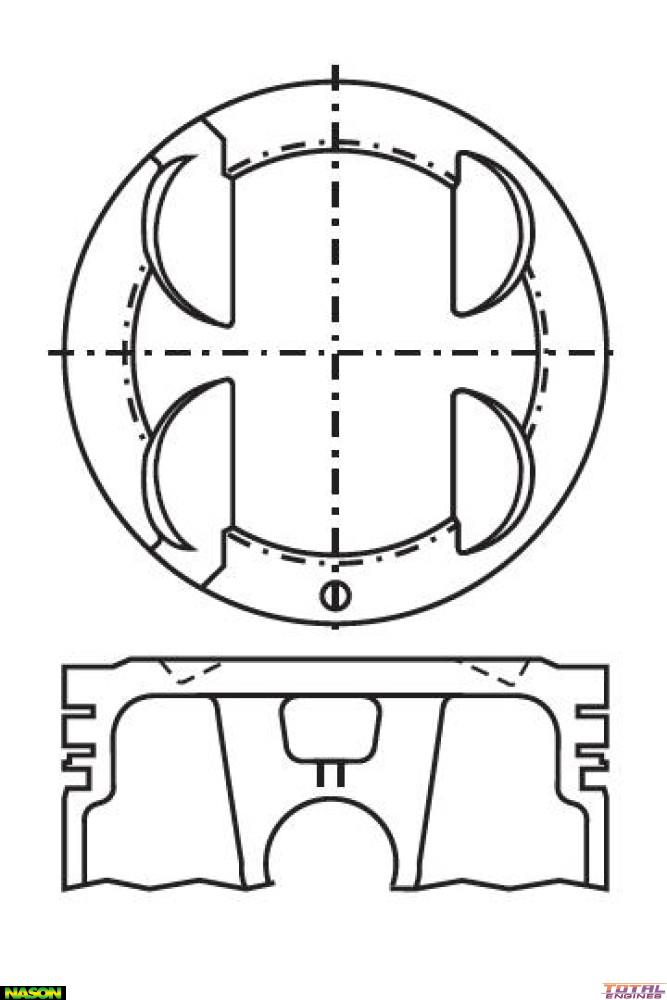

Nason Piston & pin set - 4P1034-1.00

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 83.00mm
Size: 1.00mm / .040"
Head Type: Dome Top with 4 Valve Reliefs
Piston Type: Cast
Length: 61.50mm
Comp Height: 30.60mm + 0.50mm
Pin Size: 20.00mm x 57.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2C4651

Description

Replaces 4KRY8047
