Nason >> Nason Piston & pin set - 4P1035-1.50

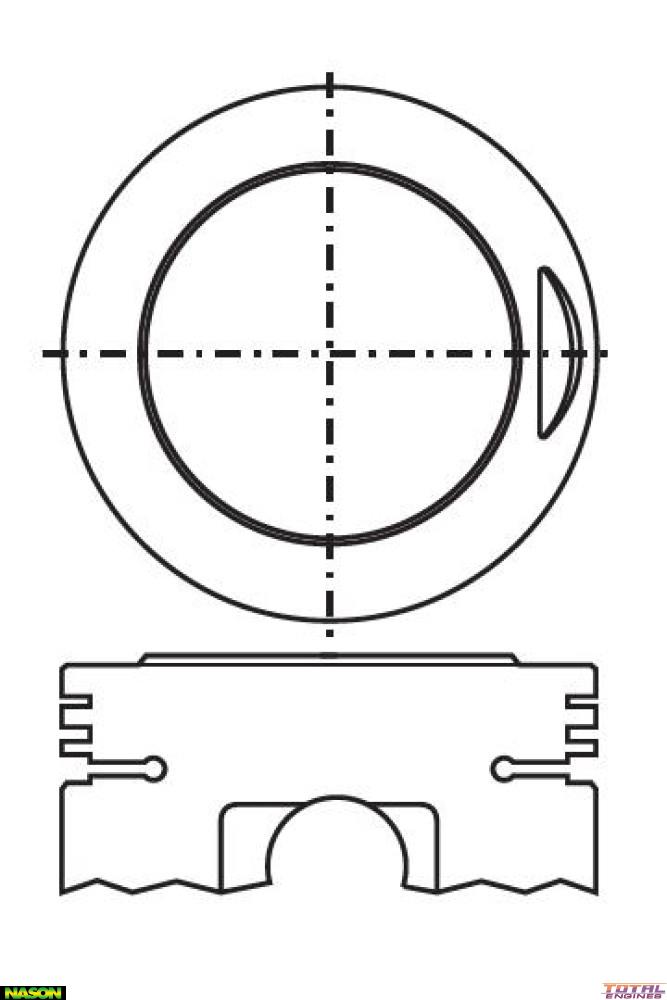

Nason Piston & pin set - 4P1035-1.50

Part
Nason logo

Nason Piston & pin set - 4P1035-1.50

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 77.00mm
Size: 1.50mm / .060"
Head Type: Dome Top with 1 Valve Relief
Piston Type: Cast
Length: 61.70mm
Comp Height: 29.00mm + 0.80mm
Pin Size: 20.00mm x 65.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 2C6175 or 6175

Description

Replaces 4KRY8048
