Nason >> Nason Piston & pin set - 4P1036-0.50

Nason Piston & pin set - 4P1036-0.50

Part
Nason logo

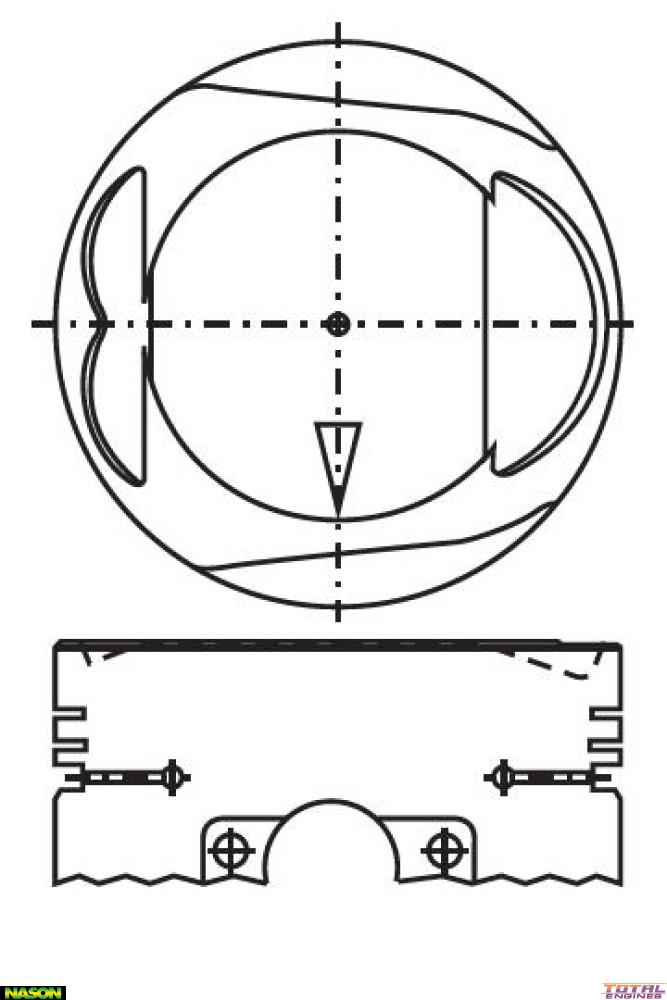

Nason Piston & pin set - 4P1036-0.50

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.50mm
Size: 0.50mm / .020"
Head Type: Dome Top with 3 Valve Reliefs
Piston Type: Cast
Length: 72.40mm
Comp Height: 35.00mm + 0.40mm
Pin Size: 21.00mm x 72.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C4638 or 4638

Description

21mm Piston Pins

Replaces 4KRY8062
