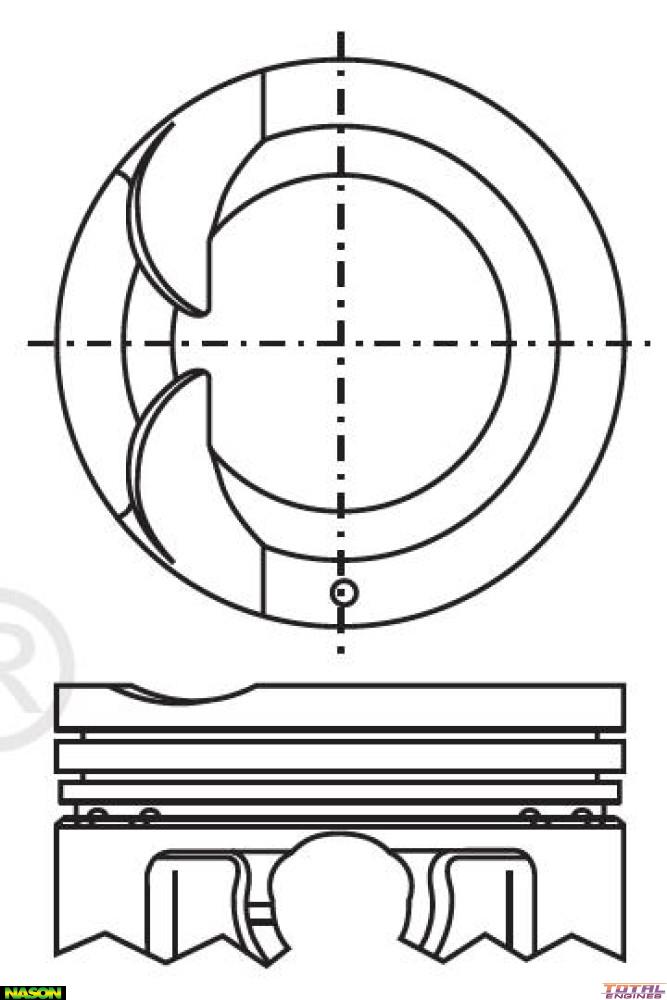

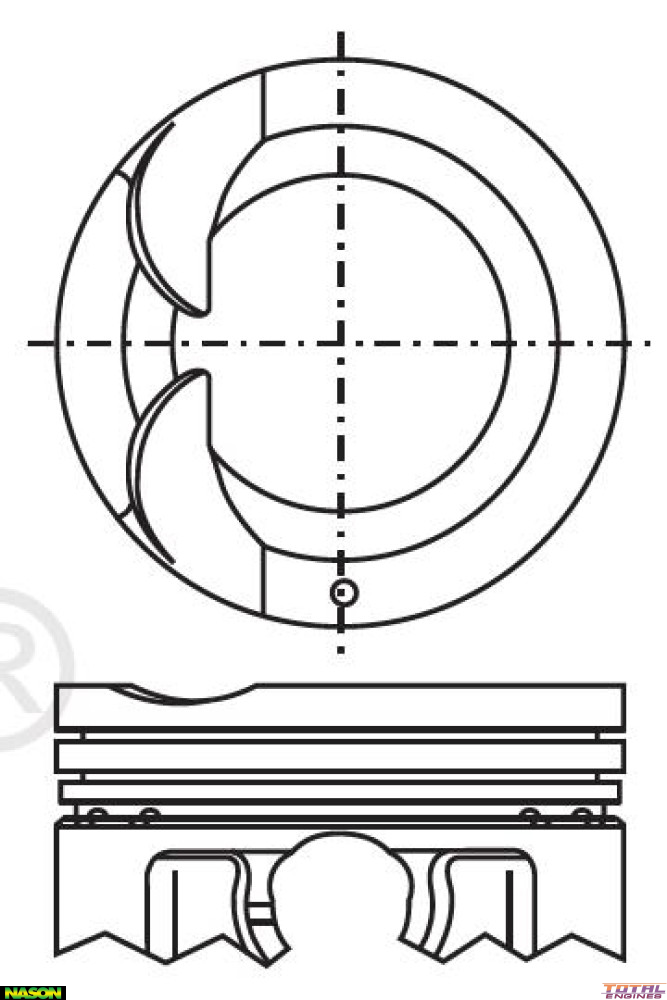

Nason Piston & pin set - 4P1040-0.50

Part

Nason Piston & pin set - 4P1040-0.50

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	78.00mm
Size:	0.50mm / .020"
Head Type:	Dish Top with 2 Valve Reliefs
Piston Type:	Cast
Length:	59.50mm
Comp Height:	29.90mm - 4.20mm
Pin Size:	20.00mm x 58.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.20mm
Oil Ring Width:	2.50mm
Ring Set:	2C4186
Size:	0.50mm Oversize
