Nason >> Nason Piston & pin set - 4P1045-0.50

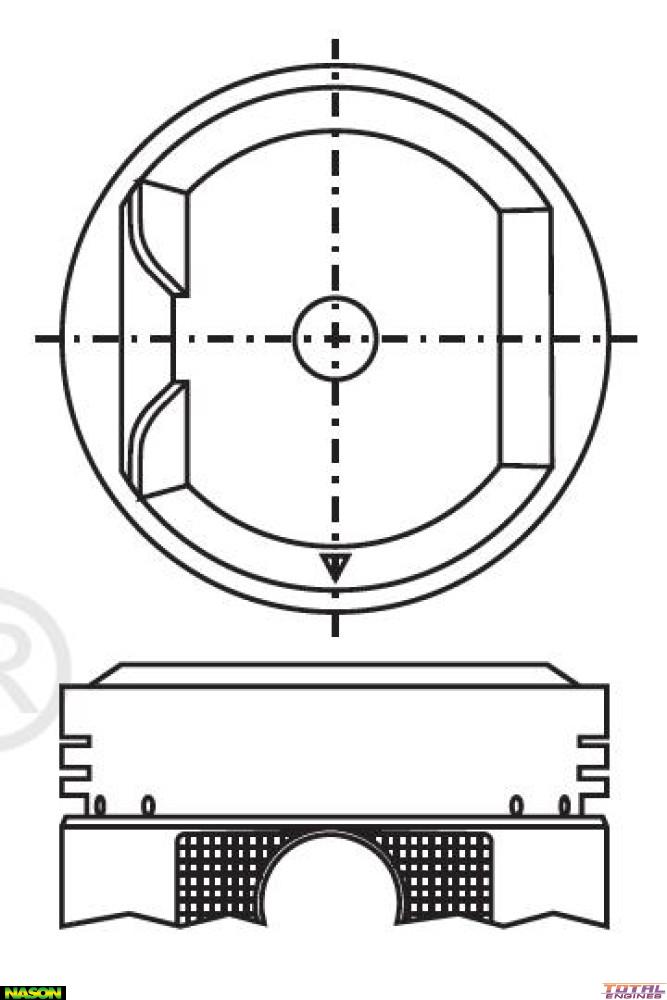

Nason Piston & pin set - 4P1045-0.50

Part
Nason logo

Nason Piston & pin set - 4P1045-0.50

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 76.00mm
Size: 0.50mm / .020"
Head Type: Dome Top with 2 Valve Reliefs
Piston Type: Cast
Length: 63.80mm
Comp Height: 30.30mm + 3.50mm
Pin Size: 19.00mm x 58.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2C4875

Description

Replaces 4MKRY2930
