Nason >> Nason Piston & pin set - 4P1047-1.00

Nason Piston & pin set - 4P1047-1.00

Part
Nason logo

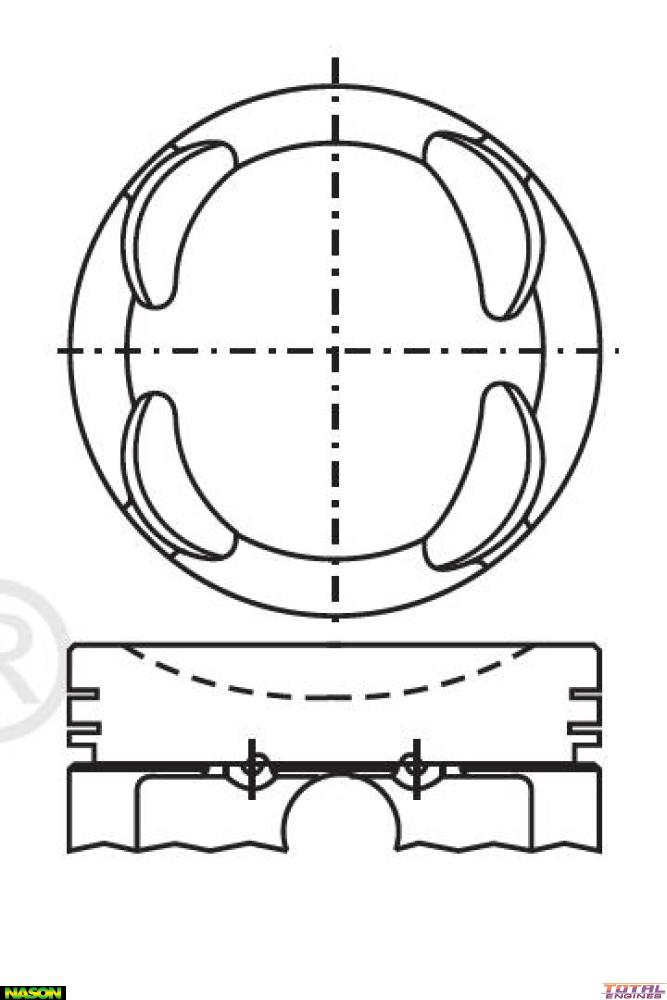

Nason Piston & pin set - 4P1047-1.00

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 83.00mm
Size: 1.00mm / .040"
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 53.90mm
Comp Height: 29.90mm - 8.30mm
Pin Size: 19.00mm x 58.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2C4771

Description

Replaces 4MKRY2943
