Nason >> Nason Piston & pin set - 4P1048-1.00

Nason Piston & pin set - 4P1048-1.00

Part
Nason logo

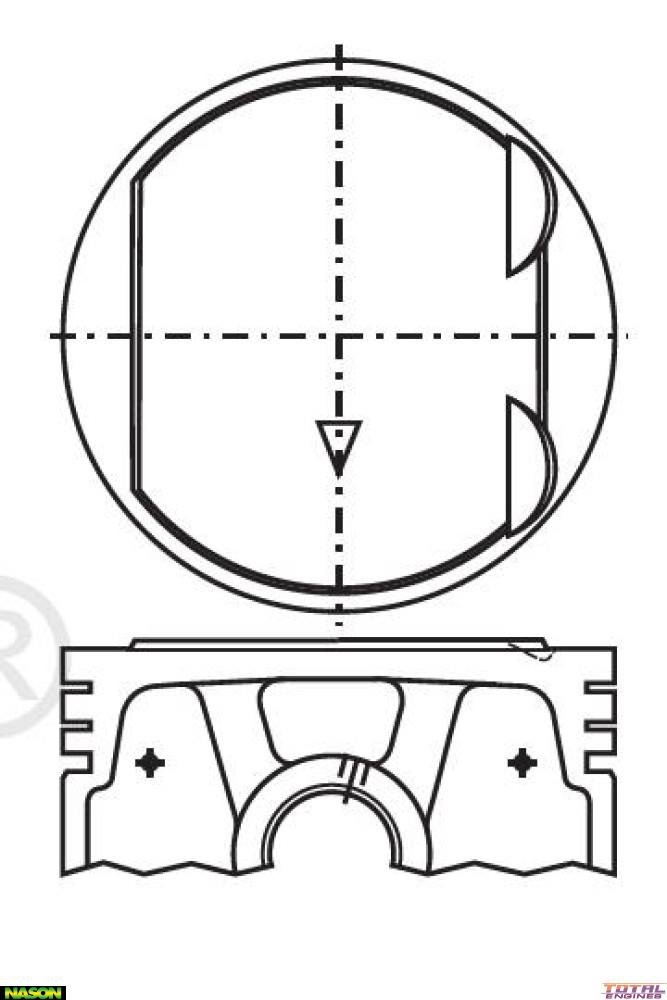

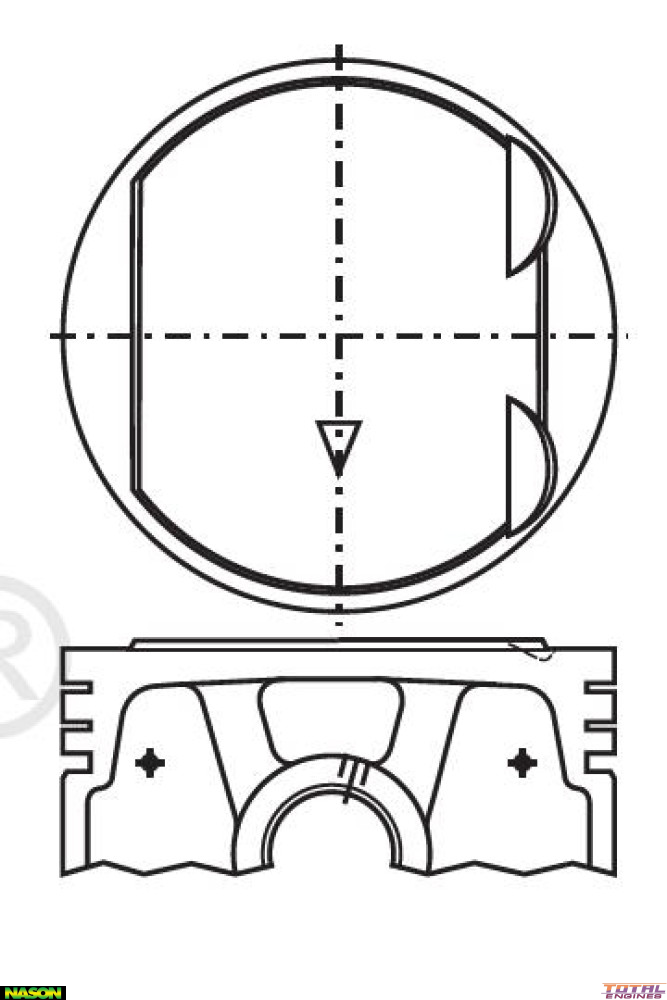

Nason Piston & pin set - 4P1048-1.00

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 81.00mm
Size: 1.00mm / .040"
Head Type: Dome Top with 2 Valve Reliefs
Piston Type: Cast
Length: 60.00mm
Comp Height: 30.80mm + 0.20mm
Pin Size: 19.00mm x 58.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.80mm
Ring Set: 2C4769
Size: 1.00mm Oversize
