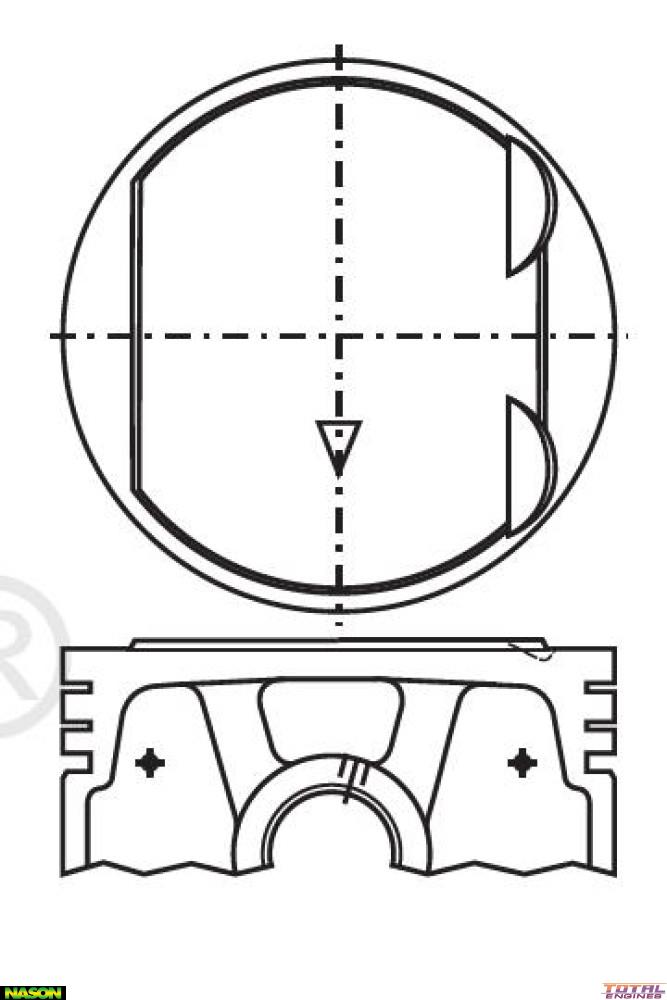

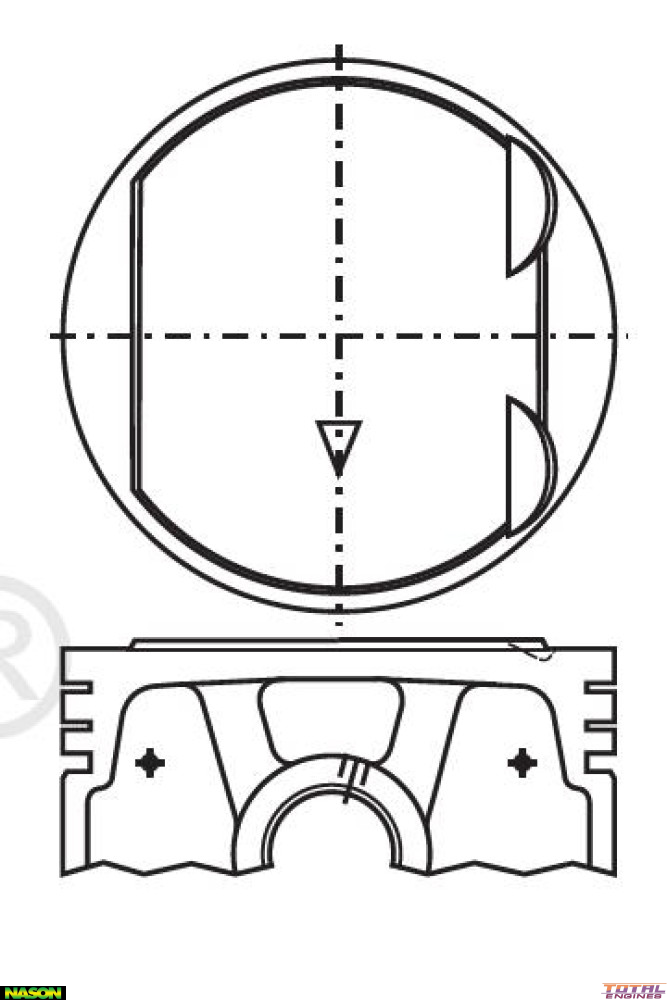

Nason Piston & pin set - 4P1048-STD

Part

Nason Piston & pin set - 4P1048-STD

Out Of Stock

Specifications
Ring Set:	2C4769
Oil Ring Width:	2.80mm
2nd Ring Width:	1.20mm
Top Ring Width:	1.20mm
Piston to Bore:	See Label on Box
Skirt Coating:	No
Pin Type:	Press Fit
Pin Size:	19.00mm x 58.00mm
Comp Height:	30.80mm + 0.20mm
Length:	60.00mm
Piston Type:	Cast
Head Type:	Dome Top with 2 Valve Reliefs
Size:	Std
Std Bore Size:	81.00mm
Piston Set:	4 x Piston & Pins
