Nason Piston & pin set - 4P1051-0.50

Part

Nason Piston & pin set - 4P1051-0.50

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	79.00mm
Size:	0.50mm / .020"

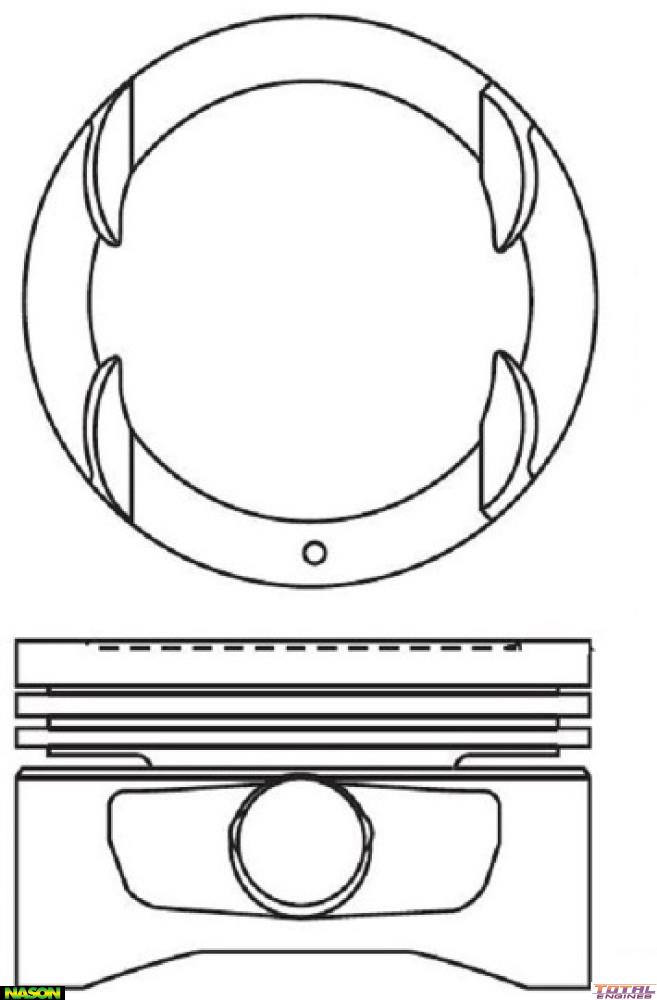

Head Type:	Dish Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	47.90mm
Comp Height:	27.60mm - 0.80mm
Pin Size:	18.00mm x 57.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	2C4602
Size:	0.50mm Oversize

Description

Dish Top with 4 Valve Reliefs
