Nason >> Nason Piston & Pin Set - 4P1054-1.00

Nason Piston & Pin Set - 4P1054-1.00

Part
Nason logo

Nason Piston & Pin Set - 4P1054-1.00

Out Of Stock

Specifications
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 3.00mm
Ring Set: 2C5005
Size: 1.00mm Oversize
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 22.00mm x 56.00mm
Comp Height: 35.00mm - 3.00mm
Length: 59.20mm
Piston Type: Cast

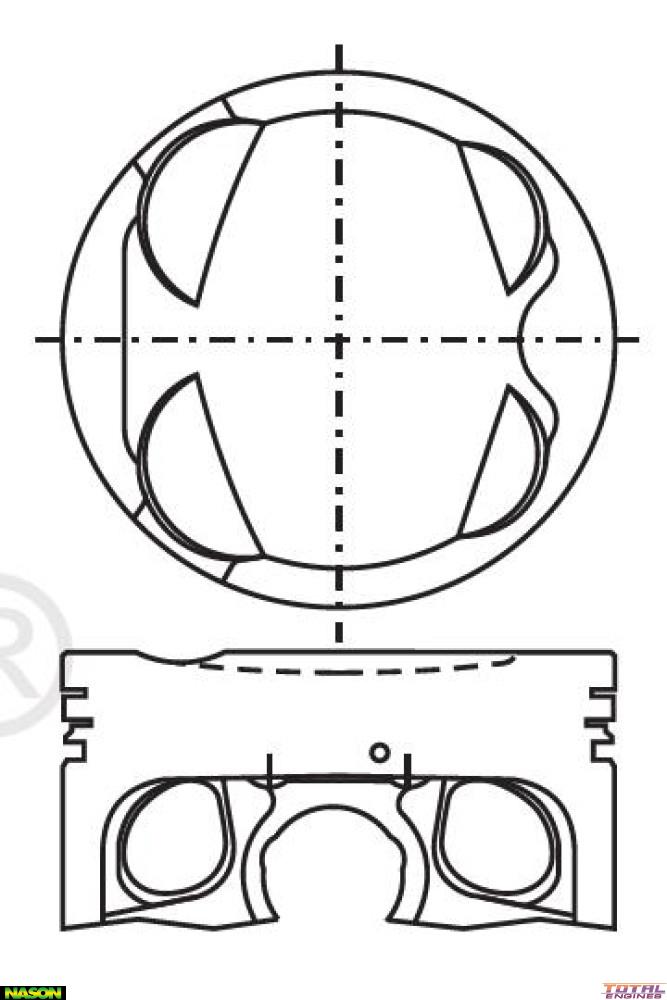

Head Type: Dish Top with 4 Valve Reliefs
Size: 1.00mm / .040"
Std Bore Size: 86.00mm
Piston Set: 4 x Piston & Pins

Description

Press Fit Pin 1996 to 2001
