Nason >> Nason Piston & pin set - 4P1056-1.00

Nason Piston & pin set - 4P1056-1.00

Part
Nason logo

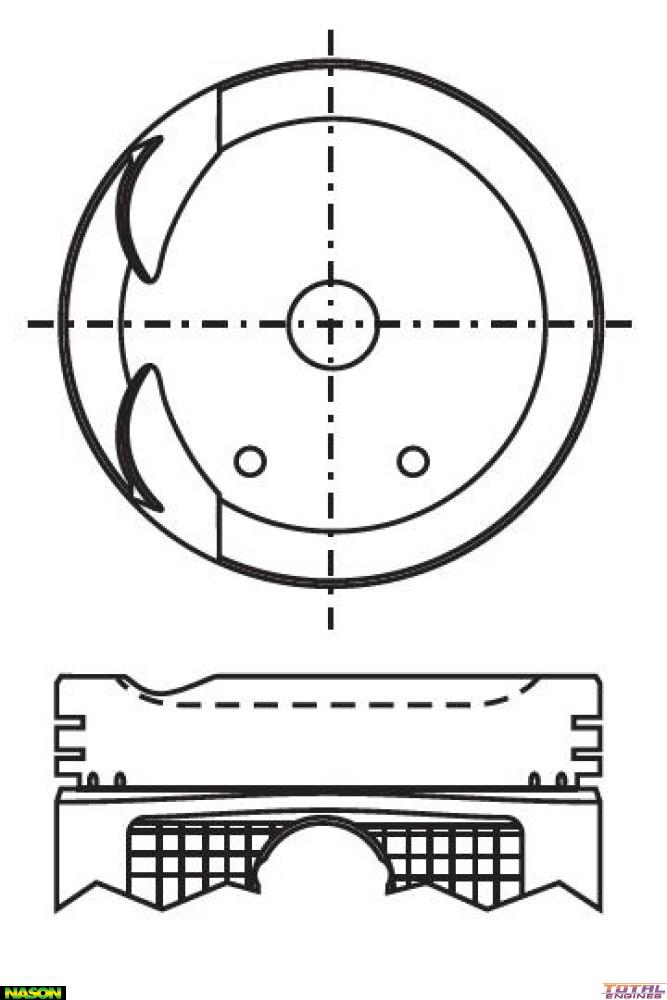

Nason Piston & pin set - 4P1056-1.00

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 72.00mm
Size: 1.00mm / .040"
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 45.20mm
Comp Height: 28.10mm - 3.95mm
Pin Size: 18.00mm x 54.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5266

Description

Anodized Head, Top & 2nd Ring Lands

Replaces 4MKRY7035
