Nason >> Nason Piston & pin set - 4P1056-STD

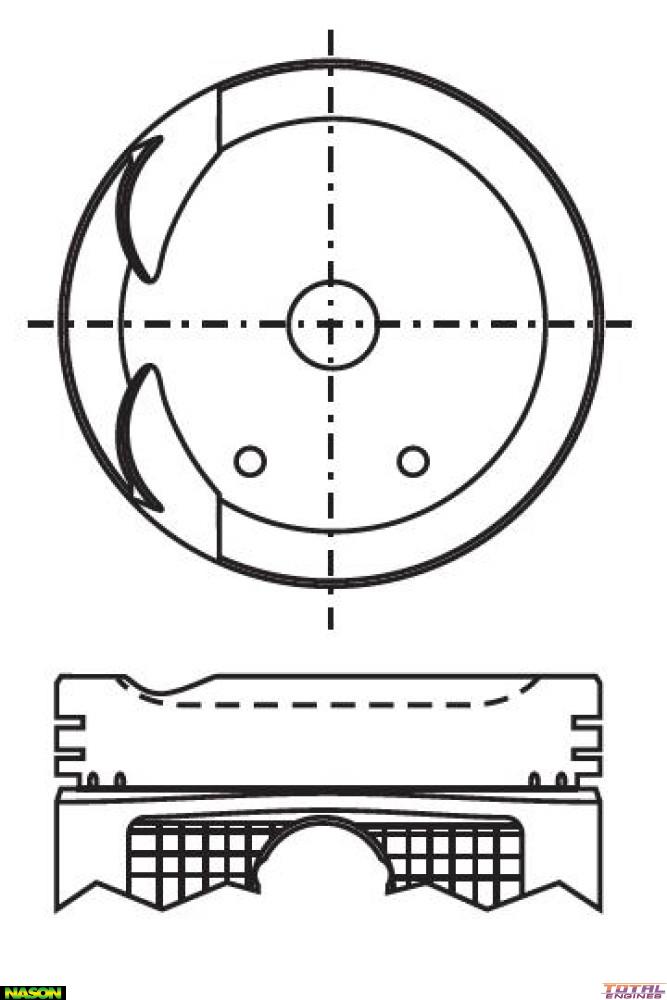

Nason Piston & pin set - 4P1056-STD

Part
Nason logo

Nason Piston & pin set - 4P1056-STD

Out Of Stock

Specifications
Ring Set: 2C5266
Oil Ring Width: 2.00mm
2nd Ring Width: 1.20mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 18.00mm x 54.00mm
Comp Height: 28.10mm - 3.95mm
Length: 45.20mm
Piston Type: Cast
Head Type: Dish Top with 2 Valve Reliefs
Size: Std
Std Bore Size: 72.00mm
Piston Set: 4 x Piston & Pins

Description

Anodized Head, Top & 2nd Ring Lands
