Nason >> Nason Piston & pin set - 4P1057-1.00

Nason Piston & pin set - 4P1057-1.00

Part
Nason logo

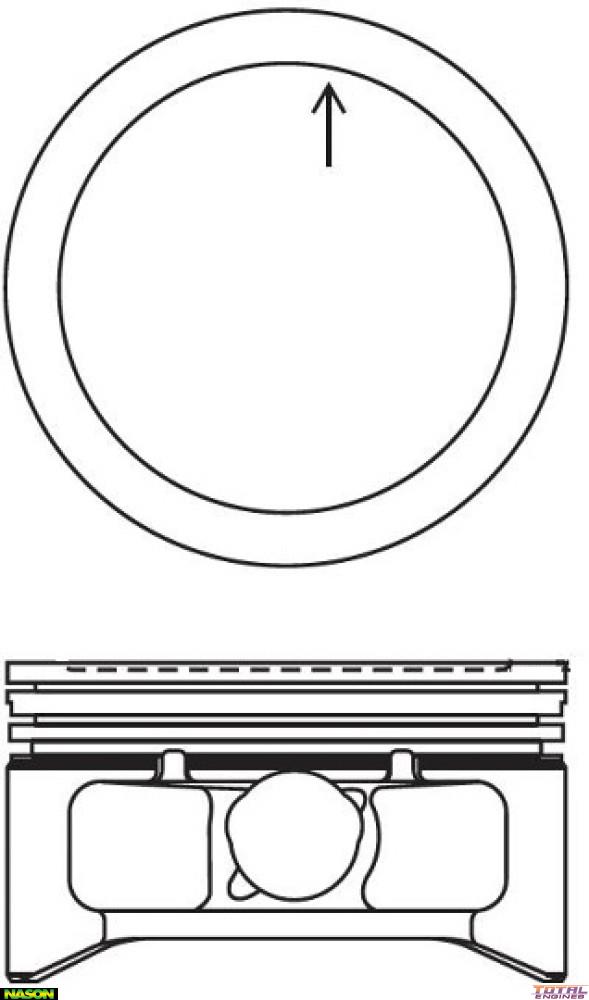

Nason Piston & pin set - 4P1057-1.00

$196.91

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.00mm
Size: 1.00mm / .040"
Head Type: Dish Top
Piston Type: Cast
Length: 48.90mm
Comp Height: 26.75mm - 0.61mm
Pin Size: 20.00mm x 60.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.50mm
Ring Set: 2C5130

Description

Suits Z22SE Only

Anodized Top & 2nd Ring Lands

Replaces 4MKRY7046
