Nason >> Nason Piston & pin set - 4P1058-0.50

Nason Piston & pin set - 4P1058-0.50

Part
Nason logo

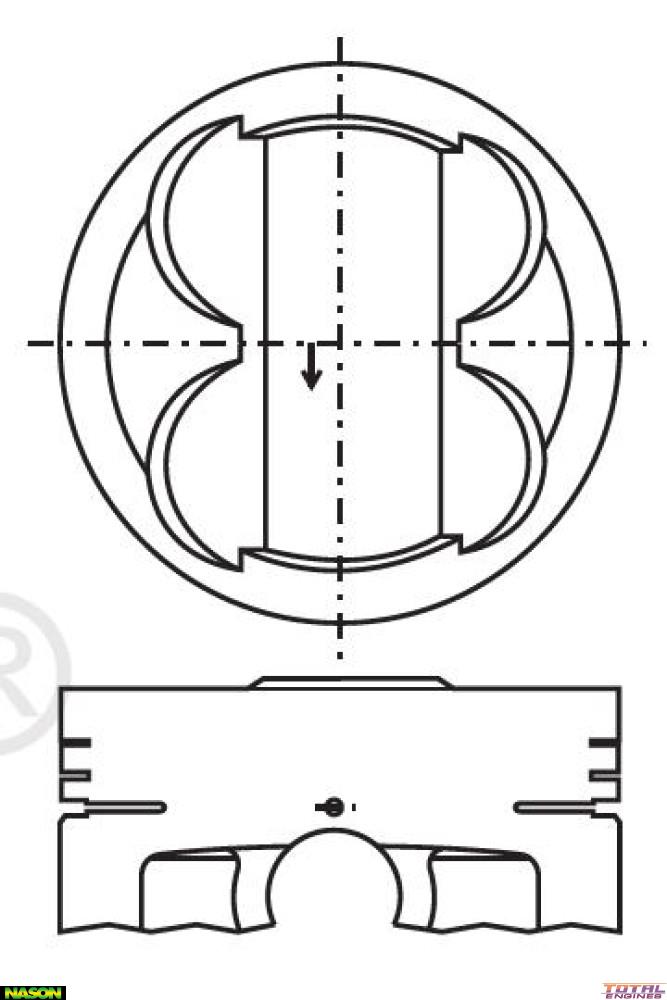

Nason Piston & pin set - 4P1058-0.50

$209.14

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 81.00mm
Size: 0.50mm / .020"
Head Type: Dome Top with 4 Valve Reliefs
Piston Type: Cast
Length: 66.00mm
Comp Height: 30.50mm + 1.50mm
Pin Size: 20.00mm x 61.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C4684
Size: 0.50mm Oversize

Description

Dome Top with 20mm Piston Pin
